TRAYCONTROL® 500-C
Descrizione
Temperature range
flexing -5°C to +90°C
fixed installation -40°C to +90°C
Nominal voltage
TC 600V
AWM 1000V
WTTC 1000V
Informazioni aggiuntive
| Approval | CSA, EAC, HL, UL |
|---|---|
| Properties | Cable tray, Dir-Bur, Oil resistant, Sunlight resistant |
Datasheet
Compliance
File Number:
E330430: TC, TC-ER, TC-ER-HL
E330431: MTW
E330432: WTTC
E336111: CL2, CL2P, CL2R, CL2X, CL3, CL3P, CL3R, CL3X, PLTC
E336112: ITC
E335220: DP-1, DP-2, DP-3

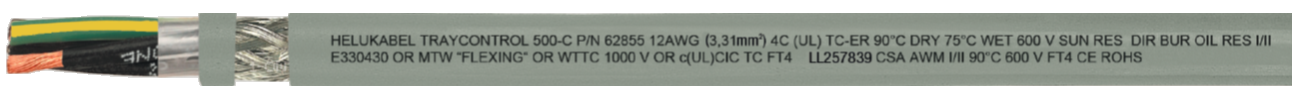

HELUKABEL® TRAYCONTROL® 500-C is a flexible, screened and oil-resistant control cable. The special combination of TC-ER, PLTC-ER and ITC-ER allows this cable to be used as a connecting cable for industrial plant and machinery in accordance with NFPA 79. Approved for open, unprotected installation in cable trays to the machine. Its outstanding oil resistance (OIL RES I & II) guarantees a long service life for industrial applications in dry, damp and wet environments. Recommended applications: production lines, bottling plants, machine construction, switch cabinets, conveyor systems, packaging machines, automotive industry.
EMC = Electromagnetic compatibility
To optimize the EMC features we recommend a large round contact of the copper braiding on both ends.
CE = Product conforms with Low-Voltage Directive 2014/35/EU.
