B12 Hybrid connectors receptacles front panel long version power female 2×0,75mm²+4xAWG22
B12 Hybrid connectors receptacles front panel long version power female 2×0,75mm²+4xAWG22

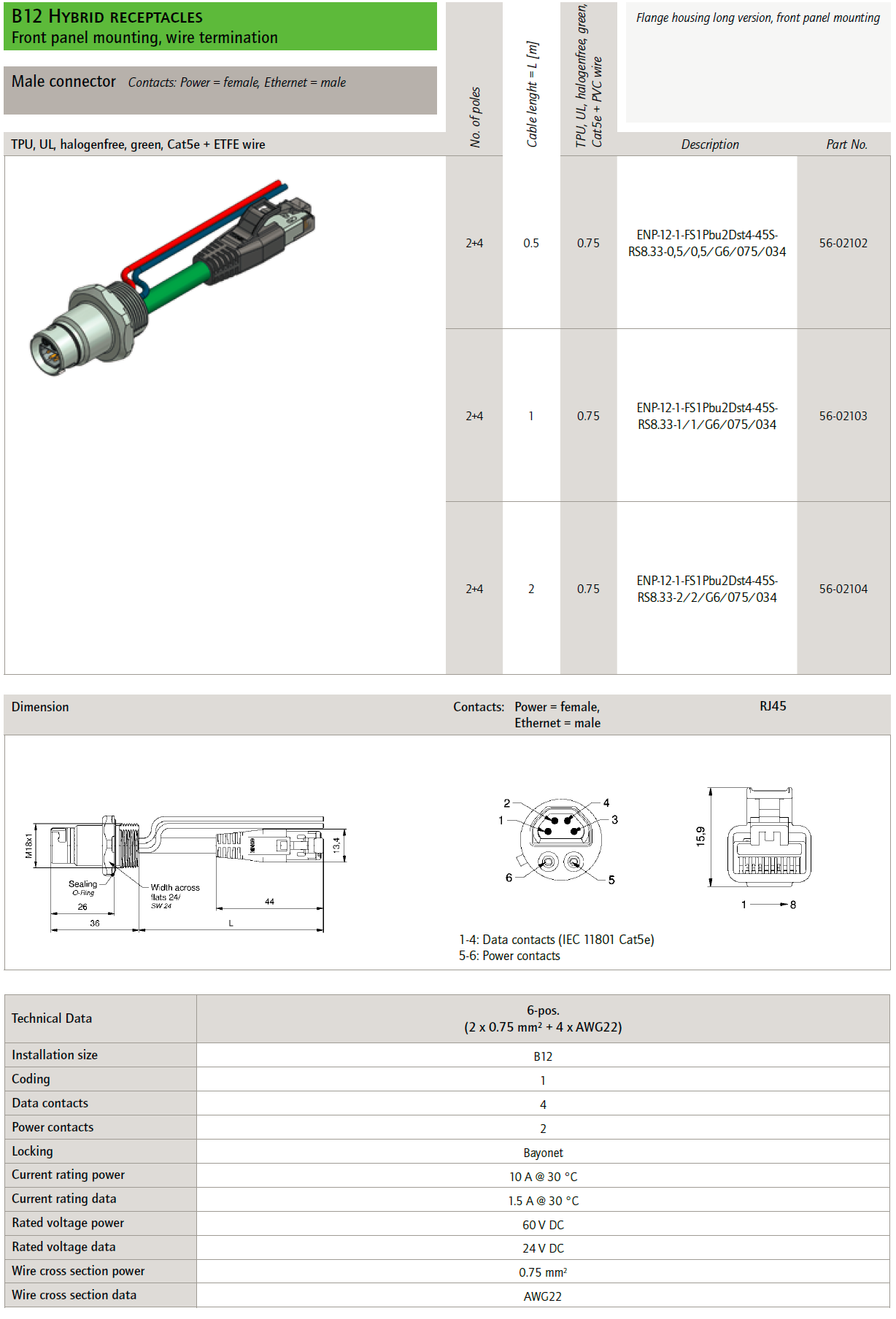

Download datasheet
56-02102 ENP-12-1-FS1Pbu2Dst4-45SRS8.33-0,5/0,5/G6/075/034 B12 Hybrid receptacles front panel mounting, wire termination, long version, power female, ethernet male, poles 2+4, sez. pwr 0,75mmq, 22AWG, cable TPU, UL, halogenfree, green, Cat5e + ETFE wire, L=0,5m
56-02103 ENP-12-1-FS1Pbu2Dst4-45SRS8.33-1/1/G6/075/034 B12 Hybrid receptacles front panel mounting, wire termination, long version, power female, ethernet male, poles 2+4, sez. pwr 0,75mmq, 22AWG, cable TPU, UL, halogenfree, green, Cat5e + ETFE wire, L=1m
56-02104 ENP-12-1-FS1Pbu2Dst4-45SRS8.33-2/2/G6/075/034 B12 Hybrid receptacles front panel mounting, wire termination, long version, power female, ethernet male, poles 2+4, sez. pwr 0,75mmq, 22AWG, cable TPU, UL, halogenfree, green, Cat5e + ETFE wire, L=2m
Descrizione
General Data
Product style Receptacle
Size A-side B12
Size B-side RJ45 + Wire power
Gender connector housing A-side Male
Gender power contacts A-side Power= Female / Ethernet= Male
No. of poles power contacts A-side 2-pos.
No. of poles data contacts 4-pos.
Mounting style Front panel mounting
Type receptacle housing Long version
Locking type Bajonett
Technical Data
Rated voltage power contacts 60 V DC
Rated voltage data contacts 24 V DC
Current Rating power contacts 10 A
Current rating data contacts 1,5 A
Wire cross section power contacts 0,75 mm²
Wire cross section data contacts AWG22
Degree of protection IP67
Performance data core 100 MHz Cat5
