Distributore ASB-Classic 8 porte LED M8x1 segnale Plastic 26 mm cavo PUR nero M23 maschio 90°

    Richiesta informazioni

    Compila il form e invia una richiesta su questo prodotto





    Distributore ASB-Classic 8 porte LED M8x1 segnale Plastic 26 mm cavo PUR nero M23 maschio 90°




    Download datasheet

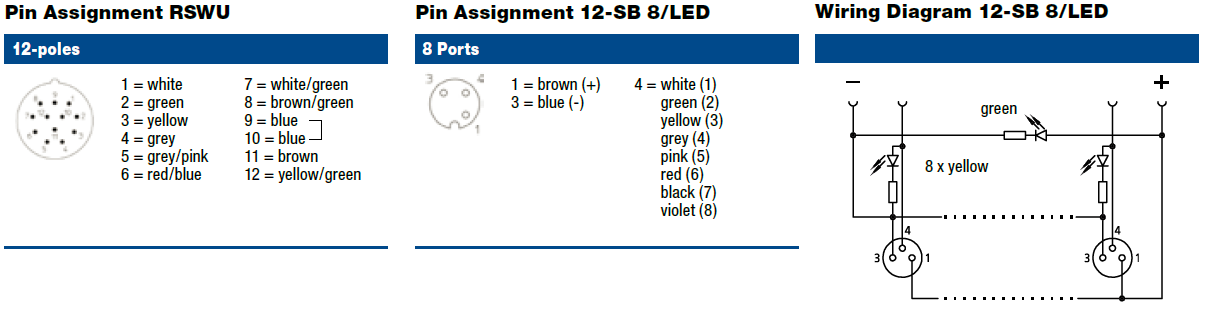

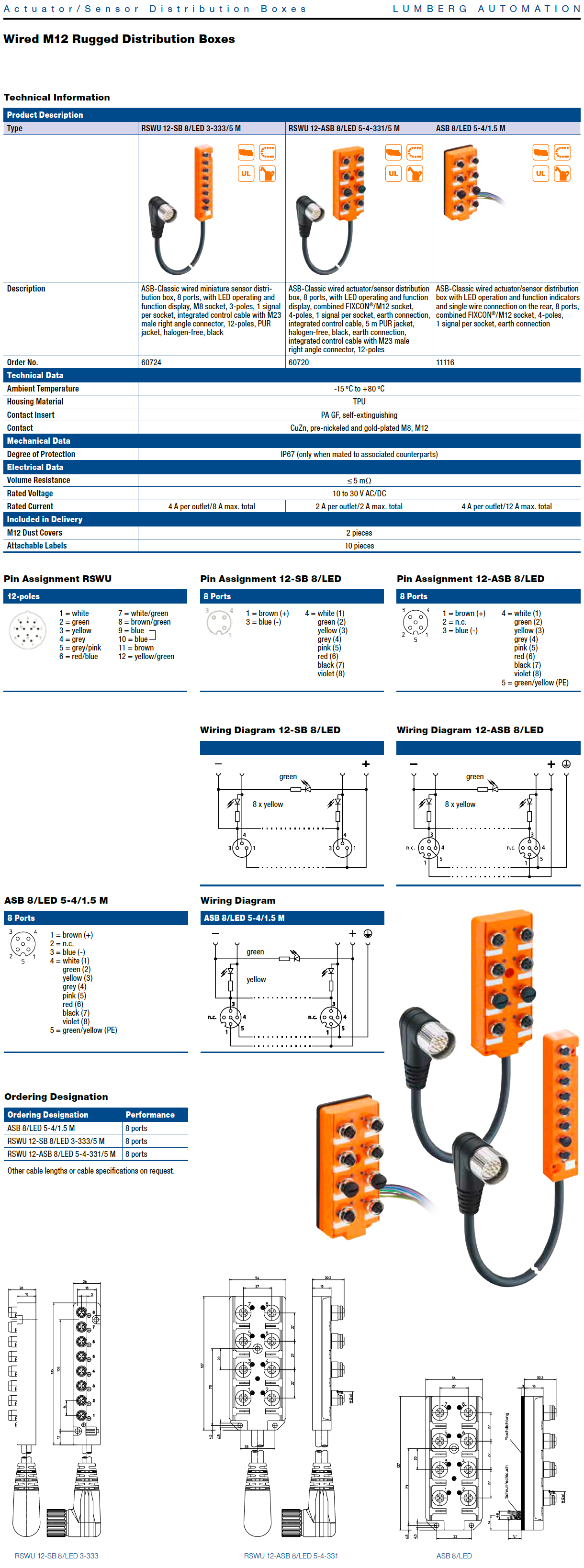

    RSWU 12-SB 8/LED 3-333/5 M – Miniature sensor distribution box with LED operation and function indicators, 8-ports, top-entry, screw-lock M8 sockets, 3-poles, 1 signal per socket, earth connection, integrated control cable with M23 male right angle connector, 12-poles. Plastic, 26 mm

    CONDIVIDI / SHARE

    Descrizione

    Technnical data
    Environmental
    Degree of protection IP 67 / NEMA 6P
    Operating temperature range -15°C (+5°F) / +90°C (+194°F)
    Mechanical
    Housing / Molded body TPU, self-extinguishing
    Insert RSWU: PBT
    SB: TPU, self-extinguishing
    Contact CuZn, pre-nickeled and 0.8 microns gold-plated
    Receptacle shell CuZn, nickel-plated
    O-ring FKM
    Electrical data
    Contact resistance ≤ 5 mΩ
    Nominal current at 40°C RSWU-SB: 2 A per outlet / 2 A max. total
    Nominal voltage 10–30 V DC
    Rated voltage 32 V
    Insulation resistance > 10-9 Ω
    Pollution degree 3
