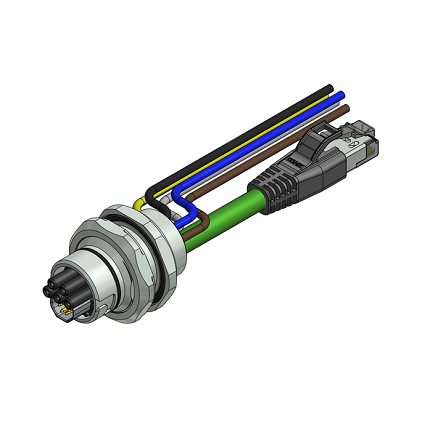

B17 Hybrid connectors receptacles back panel short version power female

    Richiesta informazioni

    Compila il form e invia una richiesta su questo prodotto





    B17 Hybrid connectors receptacles back panel short version power female






    Download datasheet
    57-02396 ENP-17-1-FSH2Pbu2PEDst4-45SRS8.33-0,5/0,5/G6/150/034 B17 Hybrid receptacles back panel mounting, wire termination, short version, power female, ethernet male, poles 3+4, sez. pwr 1,5mmq, 22AWG, cable TPU, UL, halogenfree, green, Cat5e + ETFE wire, L=0,5m
    57-02397 ENP-17-1-FSH2Pbu2PEDst4-45SRS8.33-1/1/G6/150/034 B17 Hybrid receptacles back panel mounting, wire termination, short version, power female, ethernet male, poles 3+4, sez. pwr 1,5mmq, 22AWG, cable TPU, UL, halogenfree, green, Cat5e + ETFE wire, L=1m
    57-02398 ENP-17-1-FSH2Pbu2PEDst4-45SRS8.33-2/2/G6/150/034 B17 Hybrid receptacles back panel mounting, wire termination, short version, power female, ethernet male, poles 3+4, sez. pwr 1,5mmq, 22AWG, cable TPU, UL, halogenfree, green, Cat5e + ETFE wire, L=2m
    Download datasheet
    57-02405 ENP-17-1-FSH2Pbu2PEADst4-45SRS8.33-0,5/0,5/G6/250/034 B17 Hybrid receptacles back panel mounting, wire termination, short version, power female, ethernet male, poles 3+4, sez. pwr 2,5mmq, 22AWG, cable TPU, UL, halogenfree, green, Cat5e + ETFE wire, L=0,5m
    57-02406 ENP-17-1-FSH2Pbu2PEADst4-45SRS8.33-1/1/G6/250/034 B17 Hybrid receptacles back panel mounting, wire termination, short version, power female, ethernet male, poles 3+4, sez. pwr 2,5mmq, 22AWG, cable TPU, UL, halogenfree, green, Cat5e + ETFE wire, L=1m
    57-02407 ENP-17-1-FSH2Pbu2PEADst4-45SRS8.33-2/2/G6/250/034 B17 Hybrid receptacles back panel mounting, wire termination, short version, power female, ethernet male, poles 3+4, sez. pwr 2,5mmq, 22AWG, cable TPU, UL, halogenfree, green, Cat5e + ETFE wire, L=2m
    Download datasheet
    57-02414 ENP-17-1-FSH2Pbu3PEDst4-45SRS8.33-0,5/0,5/G6/150/034 B17 Hybrid receptacles back panel mounting, wire termination, short version, power female, ethernet male, poles 4+4, sez. pwr 1,5mmq, 22AWG, cable TPU, UL, halogenfree, green, Cat5e + ETFE wire, L=0,5m
    57-02415 ENP-17-1-FSH2Pbu3PEDst4-45SRS8.33-1/1/G6/150/034 B17 Hybrid receptacles back panel mounting, wire termination, short version, power female, ethernet male, poles 4+4, sez. pwr 1,5mmq, 22AWG, cable TPU, UL, halogenfree, green, Cat5e + ETFE wire, L=1m
    57-02416 ENP-17-1-FSH2Pbu3PEDst4-45SRS8.33-2/2/G6/150/034 B17 Hybrid receptacles back panel mounting, wire termination, short version, power female, ethernet male, poles 4+4, sez. pwr 1,5mmq, 22AWG, cable TPU, UL, halogenfree, green, Cat5e + ETFE wire, L=2m
    Download datasheet
    57-02423 ENP-17-1-FSH2Pbu4PEDst4-45SRS8.33-0,5/0,5/G6/150/034 B17 Hybrid receptacles back panel mounting, wire termination, short version, power female, ethernet male, poles 5+4, sez. pwr 1,5mmq, 22AWG, cable TPU, UL, halogenfree, green, Cat5e + ETFE wire, L=0,5m
    57-02424 ENP-17-1-FSH2Pbu4PEDst4-45SRS8.33-1/1/G6/150/034 B17 Hybrid receptacles back panel mounting, wire termination, short version, power female, ethernet male, poles 5+4, sez. pwr 1,5mmq, 22AWG, cable TPU, UL, halogenfree, green, Cat5e + ETFE wire, L=1m
    57-02425 ENP-17-1-FSH2Pbu4PEDst4-45SRS8.33-2/2/G6/150/034 B17 Hybrid receptacles back panel mounting, wire termination, short version, power female, ethernet male, poles 5+4, sez. pwr 1,5mmq, 22AWG, cable TPU, UL, halogenfree, green, Cat5e + ETFE wire, L=2m

    COD: 3dce18d19981 Categorie: , , , , Tag:
    CONDIVIDI / SHARE

    Descrizione

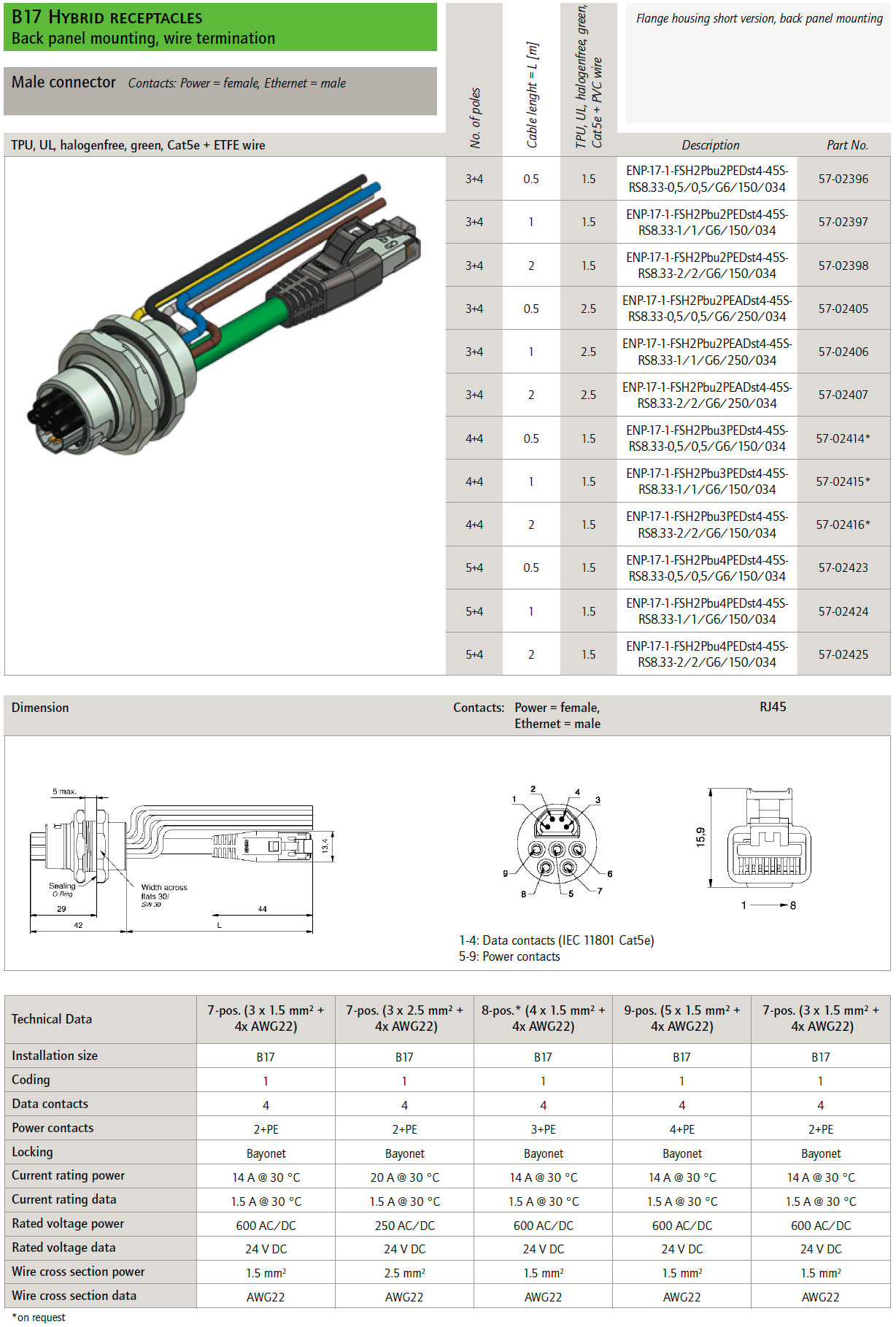

    General Data
    Product style Receptacle
    Size A-side B17
    Size B-side RJ45 + Wire power
    Gender connector housing A-side Male
    Gender power contacts A-side Power= Female / Ethernet= Male
    No. of poles data contacts 4-pos.
    Mounting style Back panel mounting
    Type receptacle housing Short version
    Locking type Bajonett
    Technical Data
    Rated voltage data contacts 24 V DC
    Wire cross section data contacts AWG22
    Degree of protection IP67
    Performance data core 100 MHz Cat5
