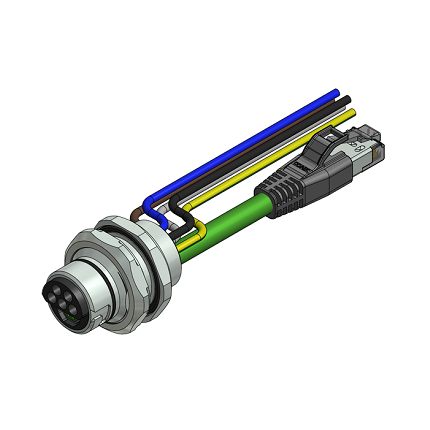

B17 Hybrid connectors receptacles back panel short version power male
B17 Hybrid connectors receptacles back panel short version power male
Download datasheet

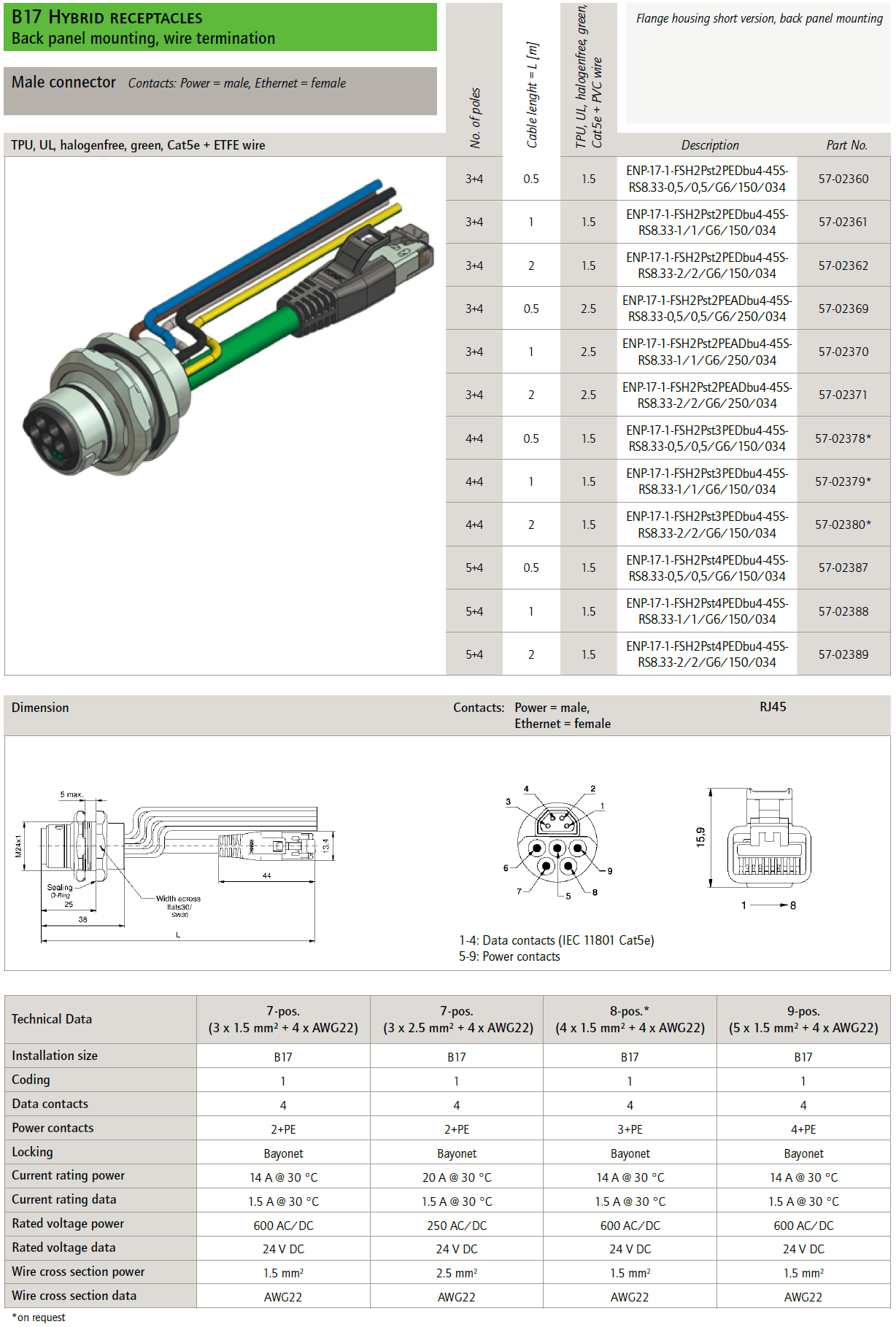

57-02360 ENP-17-1-FSH2Pst2PEDbu4-45SRS8.33-0,5/0,5/G6/150/034 B17 Hybrid receptacles back panel mounting, wire termination, short version, power male, ethernet female, poles 3+4, sez. pwr 1,5mmq, 22AWG, cable TPU, UL, halogenfree, green, Cat5e + ETFE wire, L=0,5m
57-02361 ENP-17-1-FSH2Pst2PEDbu4-45SRS8.33-1/1/G6/150/034 B17 Hybrid receptacles back panel mounting, wire termination, short version, power male, ethernet female, poles 3+4, sez. pwr 1,5mmq, 22AWG, cable TPU, UL, halogenfree, green, Cat5e + ETFE wire, L=1m
57-02362 ENP-17-1-FSH2Pst2PEDbu4-45SRS8.33-2/2/G6/150/034 B17 Hybrid receptacles back panel mounting, wire termination, short version, power male, ethernet female, poles 3+4, sez. pwr 1,5mmq, 22AWG, cable TPU, UL, halogenfree, green, Cat5e + ETFE wire, L=2m
Download datasheet
57-02369 ENP-17-1-FSH2Pst2PEADbu4-45SRS8.33-0,5/0,5/G6/250/034 B17 Hybrid receptacles back panel mounting, wire termination, short version, power male, ethernet female, poles 3+4, sez. pwr 2,5mmq, 22AWG, cable TPU, UL, halogenfree, green, Cat5e + ETFE wire, L=0,5m
57-02370 ENP-17-1-FSH2Pst2PEADbu4-45SRS8.33-1/1/G6/250/034 B17 Hybrid receptacles back panel mounting, wire termination, short version, power male, ethernet female, poles 3+4, sez. pwr 2,5mmq, 22AWG, cable TPU, UL, halogenfree, green, Cat5e + ETFE wire, L=1m
57-02371 ENP-17-1-FSH2Pst2PEADbu4-45SRS8.33-2/2/G6/250/034 B17 Hybrid receptacles back panel mounting, wire termination, short version, power male, ethernet female, poles 3+4, sez. pwr 2,5mmq, 22AWG, cable TPU, UL, halogenfree, green, Cat5e + ETFE wire, L=2m
Download datasheet
57-02378 ENP-17-1-FSH2Pst3PEDbu4-45SRS8.33-0,5/0,5/G6/150/034 B17 Hybrid receptacles back panel mounting, wire termination, short version, power male, ethernet female, poles 4+4, sez. pwr 1,5mmq, 22AWG, cable TPU, UL, halogenfree, green, Cat5e + ETFE wire, L=0,5m
57-02379 ENP-17-1-FSH2Pst3PEDbu4-45SRS8.33-1/1/G6/150/034 B17 Hybrid receptacles back panel mounting, wire termination, short version, power male, ethernet female, poles 4+4, sez. pwr 1,5mmq, 22AWG, cable TPU, UL, halogenfree, green, Cat5e + ETFE wire, L=1m
57-02380 ENP-17-1-FSH2Pst3PEDbu4-45SRS8.33-2/2/G6/150/034 B17 Hybrid receptacles back panel mounting, wire termination, short version, power male, ethernet female, poles 4+4, sez. pwr 1,5mmq, 22AWG, cable TPU, UL, halogenfree, green, Cat5e + ETFE wire, L=2m
Download datasheet
57-02387 ENP-17-1-FSH2Pst4PEDbu4-45SRS8.33-0,5/0,5/G6/150/034 B17 Hybrid receptacles back panel mounting, wire termination, short version, power male, ethernet female, poles 5+4, sez. pwr 1,5mmq, 22AWG, cable TPU, UL, halogenfree, green, Cat5e + ETFE wire, L=0,5m
57-02388 ENP-17-1-FSH2Pst4PEDbu4-45SRS8.33-1/1/G6/150/034 B17 Hybrid receptacles back panel mounting, wire termination, short version, power male, ethernet female, poles 5+4, sez. pwr 1,5mmq, 22AWG, cable TPU, UL, halogenfree, green, Cat5e + ETFE wire, L=1m
57-02389 ENP-17-1-FSH2Pst4PEDbu4-45SRS8.33-2/2/G6/150/034 B17 Hybrid receptacles back panel mounting, wire termination, short version, power male, ethernet female, poles 5+4, sez. pwr 1,5mmq, 22AWG, cable TPU, UL, halogenfree, green, Cat5e + ETFE wire, L=2m
Descrizione
General Data
Product style Receptacle
Size A-side B17
Size B-side RJ45 + Wire power
Gender connector housing A-side Male
Gender power contacts A-side Power= Female / Ethernet= Male
No. of poles data contacts 4-pos.
Mounting style Back panel mounting
Type receptacle housing Long version
Locking type Bajonett
Technical Data
Rated voltage data contacts 24 V DC
Wire cross section data contacts AWG22
Degree of protection IP67
Performance data core 100 MHz Cat5
