    Distributore ASB-Classic 8 porte LED M12x1 segnale Plastic 54 mm cavo PUR nero M23 maschio 90°




    Download datasheet

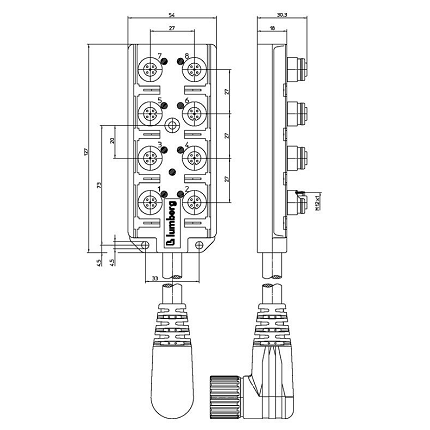

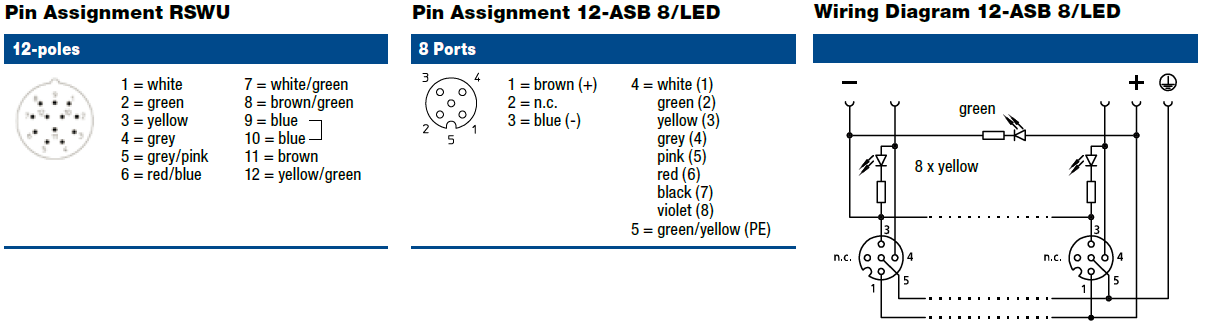

    RSWU 12-ASB 8/LED 5-4-331/5 M – Actuator/sensor distribution box with LED operation and function indicators, 8-ports, top-entry, M12 sockets, 4-poles, 1 signal per socket, earth connection, integrated control cable with M23 male right angle connector, 12-poles. Plastic, 54 mm

    CONDIVIDI / SHARE

    Descrizione

    Technnical data
    Environmental
    Degree of protection IP 67 / NEMA 6P
    Operating temperature range -15°C (+5°F) / +90°C (+194°F)
    Mechanical
    Housing / Molded body TPU, self-extinguishing
    Insert RSWU: PBT
    ASB: PA, GF, self-extinguishing
    Contact CuZn, pre-nickeled and 0.8 microns gold-plated
    Receptacle shell CuZn, nickel-plated
    O-ring FKM
    Electrical data
    Contact resistance ≤ 5 mΩ
    Nominal current at 40°C RSWU-ASB: 4 A per outlet /
    8 A max. total
    Nominal voltage 10–30 V DC
    Rated voltage 32 V
    Insulation resistance > 10-9 Ω
    Pollution degree 3
