Distributore ASB-M 8 porte con display LED M12 M23 collegamento Plastic 60 mm
Distributore ASB-M 8 porte con display LED M12 M23 collegamento Plastic 60 mm
Download datasheet

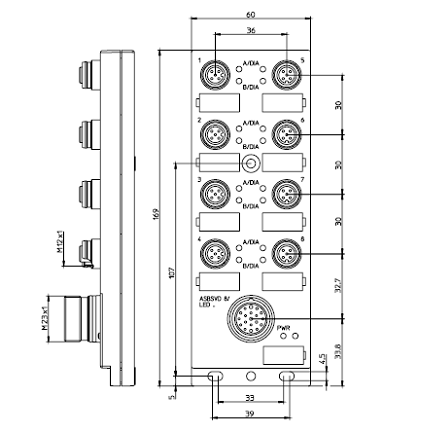

ASBSVD 8/LED W5 – Pluggable actuator/sensor distribution box with LED operation and function indicators, 8-ports with integrated fuses and diagnostics display, top-entry, M12 sockets, 5-poles with M23 quick-disconnect for the control cable. Control cable type: 19P: RKUF 19-242/…M or RKWUF 19-242/…M. Plastic, 60 mm
Descrizione
Technnical data
Environmental
Degree of protection IP 67 / NEMA 6P
Operating temperature range 0°C (+32°F) / +60°C (+140°F)
Mechanical
Housing PBT
Insert M12 PA
Contact M12 CuZn, pre-nickeled and 0.3 microns gold-plated
O-ring M12 FKM
Insert M23 PBT
Contact M23 CuZn, pre-nickeled and 0.8 microns gold-plated
O-ring M23 NBR
Receptacle shell CuZn, nickel-plated
Electrical
Nominal current at 40°C 7.5 A max. total
Nominal voltage 10-30 V DC
Short circuit protection yes
electronic fuses for all channels
I max outputs 500 mA
I max inputs 100 mA

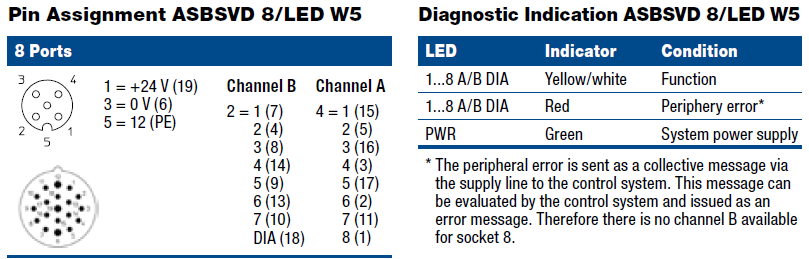

Operation indicator LED green
Function indicator LED yellow/white
Pollution degree 3
Accessories (included)
ZVK 2 dust covers for unused sockets
ZBS 10 attachable labels
