    Distributore ASB-R 4 porte LED M12x1 segnale Metal 60 mm cavo PUR nero




    Download datasheet

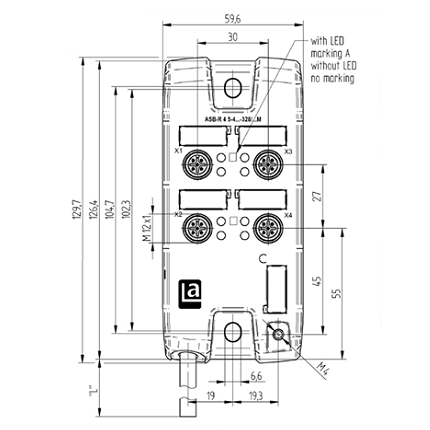

    ASB-R 4/LED 5-4-328/…M – ASB-R wired actuator/sensor distributor, 4 x M12 ports, 4-poles, with LED operating and function display, one signal per socket, ground connection, with integrated control cable, PUR jacket, halogenfree, black. Metal, 60 mm

    CONDIVIDI / SHARE

    Descrizione

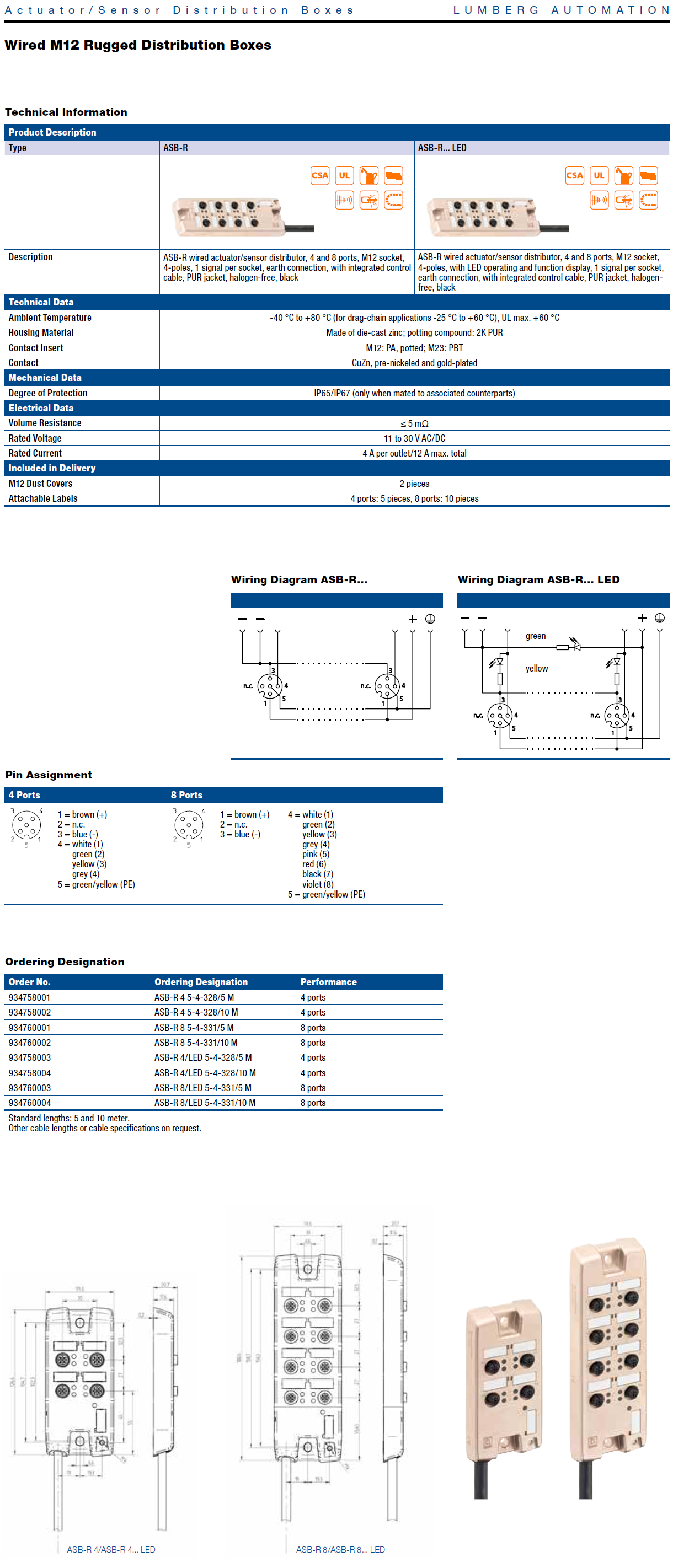

    Technnical data
    Environmental
    Degree of protection IP65 / IP67
    Pollution severity 3
    Operating temperature range -40°C / +80°C (dragchain and UL max. 60°C)
    Materials
    Contact CuZn, pre-nickeled and gold-plated
    Contact bearer TPU-GF
    Housing Zinc die casting
    O-ring FKM
    Electrical Data
    Rated voltage 30 V
    Rated current* 4 A per outlet / 8 A max. total; at 40°C
    Rated impulse voltage 32 V
    Contact resistance ≤5mΩ
    Insulation resistance > 10-9 Ω
    * only in locked position with its proper counterparts or dust covers
    Additional Technical Data
    operation display: LED Green
    Function display / channel status:
    LED Channel A: Yellow
    LED Channel B: White
