    Distributore ASB-S 4 porte LED M8x1 segnale Plastic 30 mm cavo PUR nero




    Download datasheet

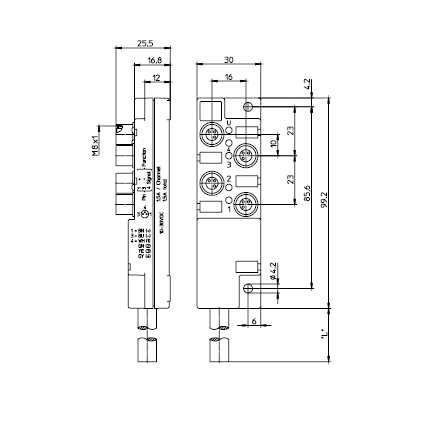

    ASBM 4/LED 3-343/…M – Pluggable miniature actuator/sensor distribution box with LED operation and function indicators, top-entry, 4-ports, M8 socket, 3-poles, 1 signal per socket, with integrated control cable. Plastic, 30 mm

    CONDIVIDI / SHARE

    Descrizione

    Technnical data
    Environmental
    Degree of protection IP 67 / NEMA 6P
    Operating temperature range -25°C (-13°F) / +70°C (+158°F)
    Mechanical
    Housing PBT
    Insert PA, self-extinguishing
    Contact CuSn, pre-nickeled and 0.8 microns gold-plated
    Receptacle shell Brass, nickel-plated
    O-ring FKM
    Electrical
    Contact resistance ≤5mΩ
    Voltage rating 10-30 V DC
    Current rating 1.5 A per port
    1.5 A max. total
    Accessories (included)
    ZVKM 2 M8 dust covers for unused sockets
    ZBR 5/10 Attachable labels:
    4-Ports: 5 pieces
    6- and 8-Ports: 10 pieces
    10- and 12-Ports: 15 pieces
