    Distributore ASB-Classic 6 porte LED M12x1 segnale M23 collegamento Plastic 60 mm




    Download datasheet

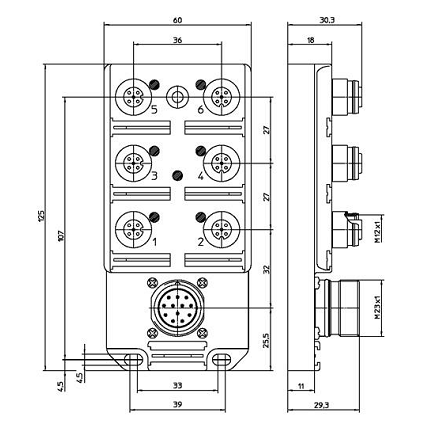

    ASBS 6/LED 5-4 – Pluggable actuator/sensor distribution box with LED operation and function indicators, 6-ports, top-entry, M12 sockets, 4-poles, 1 signals per socket, with M23 quickdisconnect for the control cable. Control cable type: 12P: RKU 12-256/…M or RKWU 12-256/…M. Plastic, 60 mm

    CONDIVIDI / SHARE

    Descrizione

    Technnical data
    Environmental
    Degree of protection IP 67 / NEMA 6P
    Operating temperature range -15°C (+5°F) / +80°C (+176°F)
    Mechanical
    Housing TPU, self-extinguishing
    Insert PA GF, self-extinguishing
    Contact CuZn, pre-nickeled and 0.8 microns gold-plated
    Receptacle shell CuZn, nickel-plated
    O-ring FKM
    Electrical
    Contact resistance ≤5mΩ
    Voltage rating 10-30 V DC
    Current rating 4 A per port / 12 A max. total
    Insulation resistance > 10-9 Ω
    Accessories (included)
    ZVK 2 dust covers for unused sockets
    ZBS 10 attachable labels
