M12 Power femmina 90° L-coded 16A TPE-U grigio
M12 Power femmina 90° L-coded 16A TPE-U grigio
TPE-U, UL 20549, grey
Download datasheet

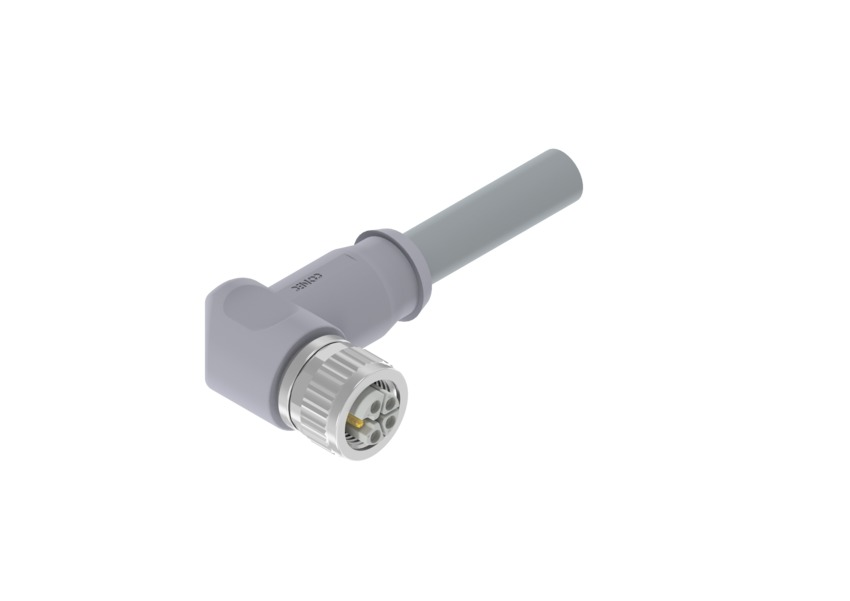

43-21404 SAL-12L-RKW4FE-2/K2 M12 L-coded female angled 5 pos. TPE-U UL Grey, 5×2,5mm², 2 m
43-21405 SAL-12L-RKW4FE-3/K2 M12 L-coded female angled 5 pos. TPE-U UL Grey, 5×2,5mm², 3 m
43-21406 SAL-12L-RKW4FE-5/K2 M12 L-coded female angled 5 pos. TPE-U UL Grey, 5×2,5mm², 5 m
43-21407 SAL-12L-RKW4FE-10/K2 M12 L-coded female angled 5 pos. TPE-U UL Grey, 5×2,5mm², 10 m
Descrizione
General Data
Product type Power connectors
Style Overmoulded Connectors
Size A-side M12x1
Design single ended
Size/Number of positions 4-pos+FE
Coding L-coded
Type A-side [ Female, Male] Female connector angled
IP range A-side IP67
Mounting options [e.g. front/back panel mounting etc.] cable connector
Termination signal [e.g. clamp, crimp, solder, SMT] Screw Termination
Screw connection [e.g. PG9, M16 etc.] M12x1
Technical Data
Working voltage signal 63 V
Current rating signal 16 A
min. working temperature -25° C
max. working temperature +80° C
Shielding Unshielded
Cable quality [e.g. PP, PVC, TPE etc.] PUR/PVC
Wire cross section 2,5 mm²
