    Distributore LioN-Classic interfaccia ad infrarossi 2DI 2DO (4x M12) Plastic 60 mm

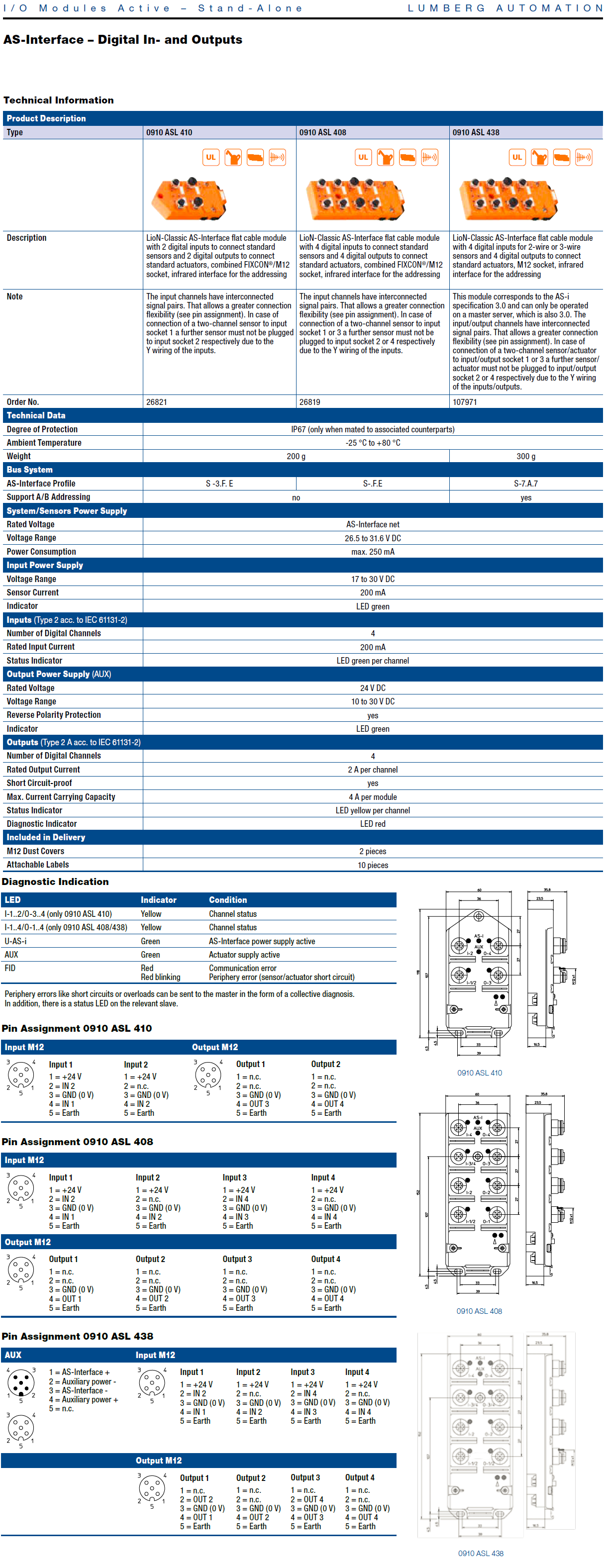

    Download datasheet

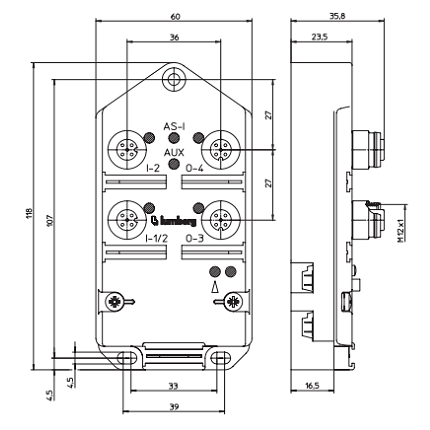

    0910 ASL 410 – LioN-Classic, AS-Interface flat cable module with 2 digital inputs to connect standard sensors and 2 digital outputs to connect standard actuators, combined M12 socket, infrared interface for the addressing., Plastic, 60 mm

    CONDIVIDI / SHARE

    Descrizione

    Technnical data
    Environmental
    Degree of protection IP 67
    Operating temperature range -25°C (-13°F) to +80°C (+176°F)
    Weight 200 g
    Housing material PUR
    Bus system AS-Interface Version 2.1
    AS-Interface profile S 3.F.E
    I/O configuration 3 hex
    ID code F hex
    ID2 code (extended ID-code) E hex
    Support A/B addressing no
    Electronics power supply AS-Interface
    Rated voltage AS-Interface net
    Voltage range 26.5–31.6 V DC
    Power consumption max. 250 mA
    Reverse polarity protection yes
    Indication LED green
    Input power supply
    Voltage range (AS-Interface net) 17–30 V
    Total current of all sensors max. 200 mA
    Short circuit-proof yes
    Inputs Type 2 acc. to IEC 61131-2
    Rated input voltage 24 V DC
    Signal state “1” Us > 11 V / Is > 6 mA
    Signal state “0” Is < 2 mA
    Input current at 24 V 15 mA
    Input circuit p-switching
    Number of digital channels 2
    Channel status indicator LED yellow per channel
    Output power supply AUX
    Rated voltage 24 V DC
    Voltage range 10–30 V
    Potential separation present
    Reverse polarity protection yes/electronic
    Indication LED green
