    Distributore LioN-Link 8DIO (8xM8) M12 Actuator Supply Plastic 30 mm

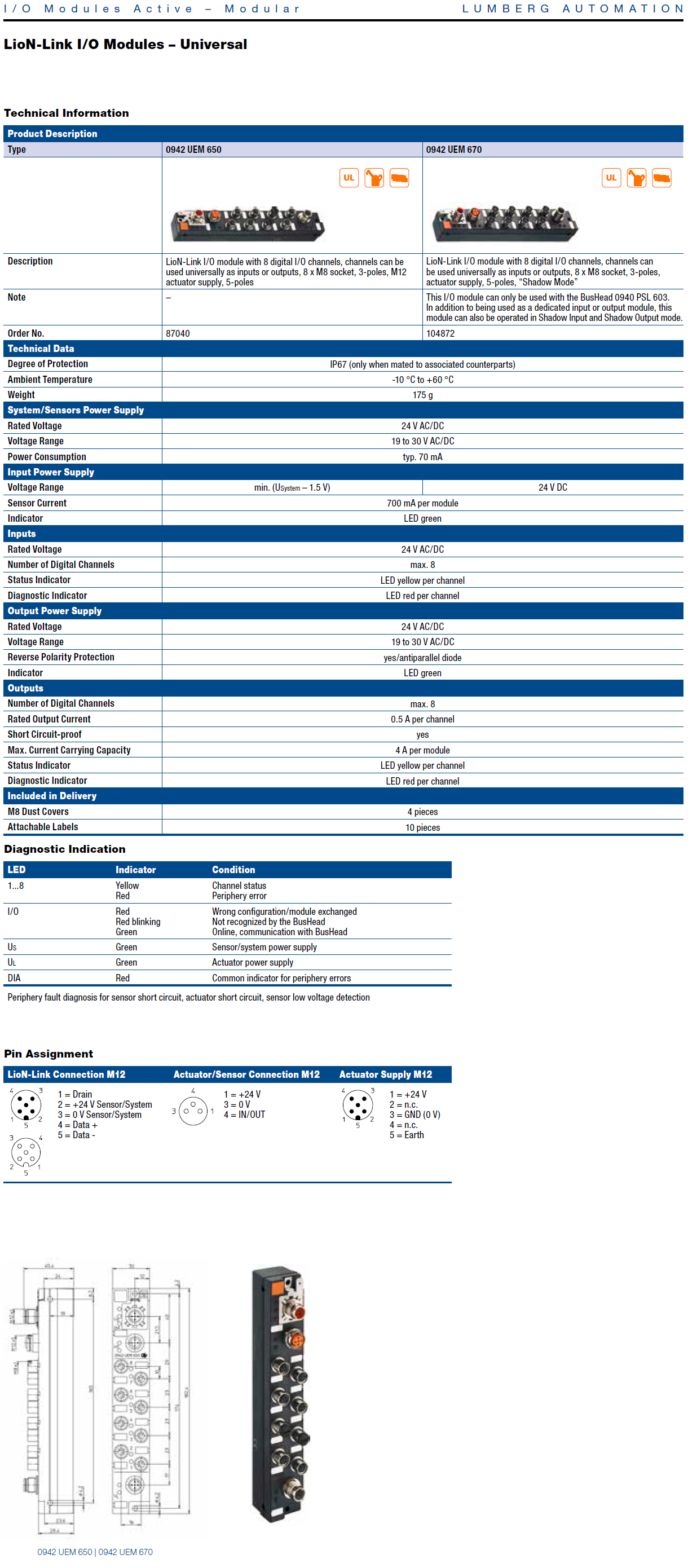

    Download datasheet
    0942 UEM 650 – LioN-Link I/O module with 8 digital I/O channels, channels can be used universally as inputs or outputs, M8 sockets (8x), 3 poles, M12 actuator supply, Plastic, 30 mm
    Download datasheet
    0942 UEM 670 – LioN-Link I/ O module with 8 digital I/O channels, channels can be used universally as inputs or outputs, M8 sockets, 3 poles Input or output functionality can be switched off while retaining the respective address range (Only with 0940 PSL 603), Plastic, 30 mm

    CONDIVIDI / SHARE

    Descrizione

    Technnical data
    Environmental
    Degree of protection IP 67
    Operating temperature range -10°C (+14°F) to +60°C (+140°F)
    Mechanical
    Weight 175 g
    Housing material PBT
    System/sensors power supply US
    Rated voltage 24 V DC
    Voltage range 19–30 V DC
    Power consumption typ. 70 mA
    Operating indication LED green
    Input power supply US
    Voltage range min. (USystem – 1.5 V) / 24 V DC
    Sensor current 700 mA/module
    Short circuit proof yes
    Indication LED green
    Input wiring Type 3 acc. to IEC 61131-2
    Rated input voltage 24 V DC
    Channel type N.O. p-switching
    Number of digital channels max. 8
    Channel status indicator LED yellow per channel
    Diagnostic indication LED red per channel
    Output power supply UL
    Rated voltage 24 V DC
    Voltage range 19–30 V DC
    Reverse polarity protection yes/antiparallel diode
    Indication LED green
    Output wiring
    Rated output current 0.5 A per channel
    Short circuit proof yes
    Max. output current 4 A per module
    Overload proof yes
    Number of digital channels max. 8
    Channel type N.O. p-switching
    Channel status indicator LED yellow per channel
    Diagnostic indication LED red per channel
    Included in delivery/accessories
    Dust covers M12, attachable labels
