Distributore LioN-Link BusHead Ethernet/IP-I/O-Device-Slave M12 Power Supply Plastic 60 mm
Distributore LioN-Link BusHead Ethernet/IP-I/O-Device-Slave M12 Power Supply Plastic 60 mm

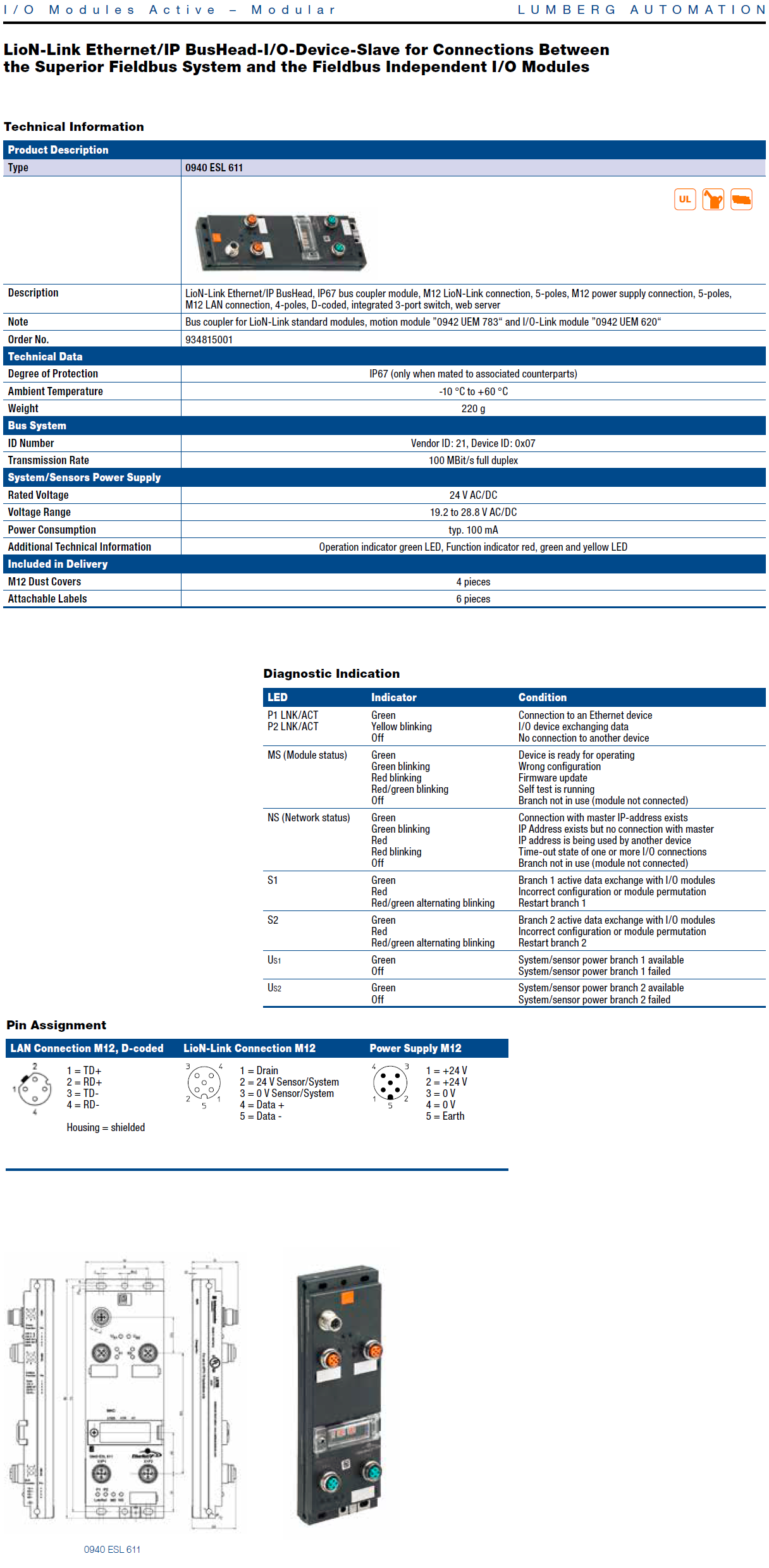

Download datasheet
0940 ESL 611 – LioN-Link EtherNet/IP Bus Coupler module provides the connections between the entire fieldbus system and the fieldbus independent I/O modules, optimizing the field wiring through the utilization of a modular, decentralized IP 67 fieldbus solution, Plastic, 60 mm
CONDIVIDI / SHARE
Descrizione
Technnical data
Environmental
Protection class (IEC 60529) * IP67
Pollution severity 3
Temperature range -10°C / +60°C
Mechanical
Housing PBT
Contact bearer PA66
Contact CuSn, gold-plated
Bushing with thread CuZn, nickel-plated
O-ring FKM
Power system
Rated voltage 24 V DC
Rated current * 3 A per slot, 8 A max.per Modul
Insulation resistance > 10^9 Ohm
Flammability class
Housing UL 94 V-0
