    Distributore LioN-Link BusHead ProfiNet-I/O-Device-Slave M12 Power Supply Plastic 60 mm

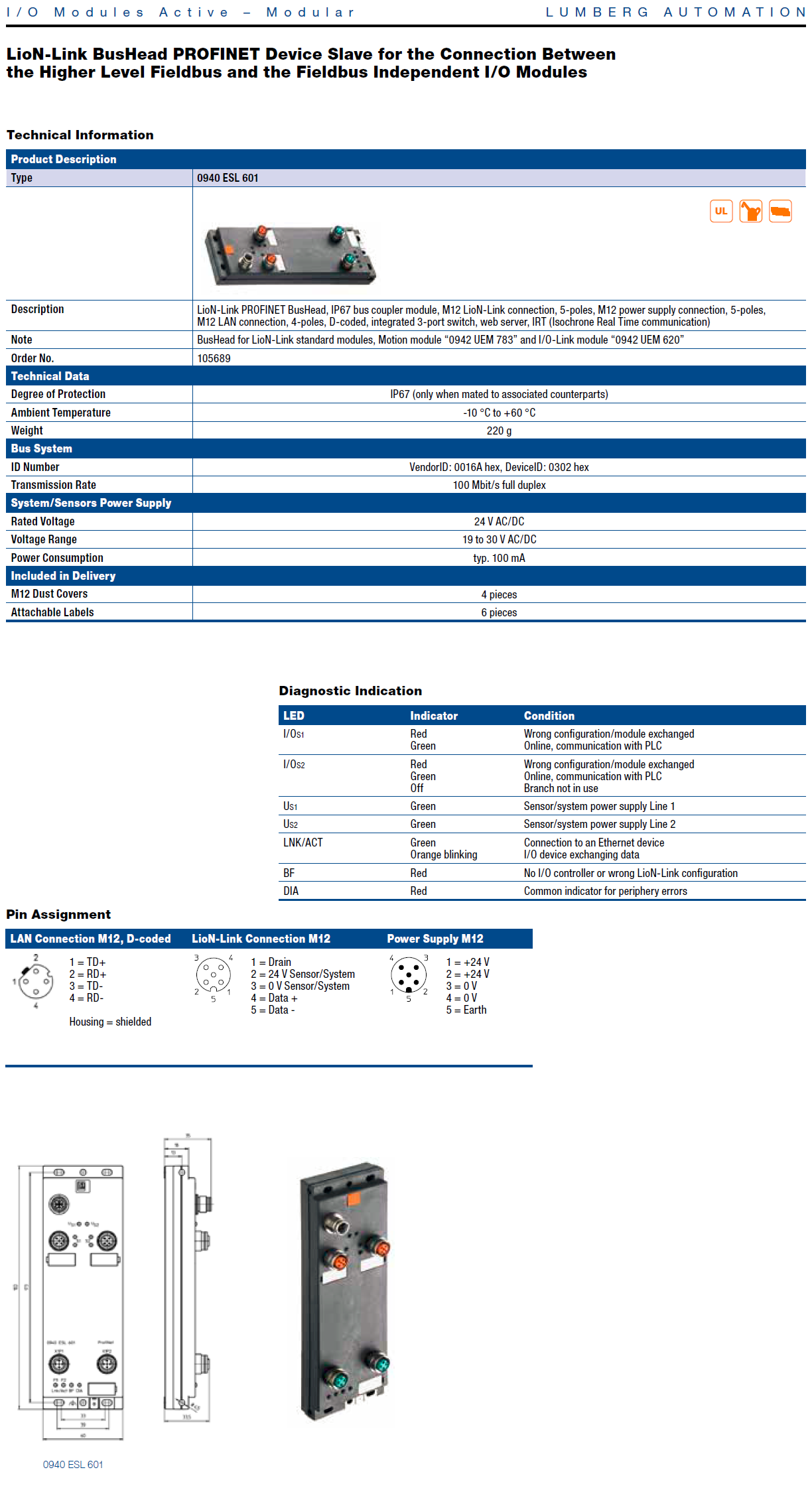

    Download datasheet
    0940 ESL 601 – LioN-Link BusHead IP 67 bus coupler module for the connection between the higher level fieldbus and the fieldbus independent I/O modules, with M12 LioN-Link connection, M12 power supply connection, Plastic, 60 mm

    CONDIVIDI / SHARE

    Descrizione

    Technnical data
    Environmental
    Degree of protection IP 67
    Operating temperature range -10°C (+14°F) to +60°C (+140°F)
    Mechanical

    Weight 800 g
    Housing material PBT
    Bus system PROFINET IO
    VendorID 0016A hex
    DeviceID 0302 hex
    GSDML file GSDML-V2.2-Lumberg Automation-LioN Link-20100408.xml
    Transmission rate 100 Mbit/s full duplex
    Transmission method 100Base-TX
    Default IP address 0
    System/sensors power supply US1, US2*
    Rated voltage 24 V DC
    Voltage range 19–30 V DC
    Power consumption typ. 100 mA
    Reverse polarity protection yes
    Indication LED green
    Output current per branch max. 3 A

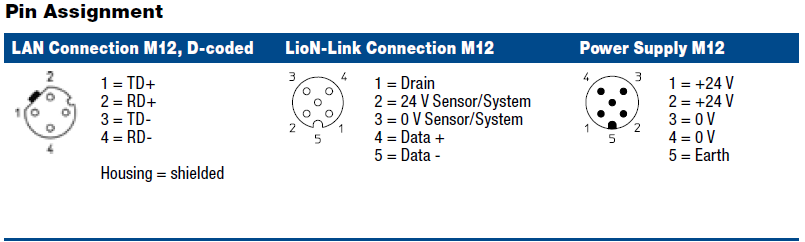

    Connection M12 plug insert (5 poles), see pin assignment
    Included in delivery/accessories Dust covers M12, attachable labels
