Distributore LioN-M Device 16DI (8x M12) 7/8” Bus connection Plastic 60 mm
Distributore LioN-M Device 16DI (8x M12) 7/8” Bus connection Plastic 60 mm
Download datasheet
0930 DSL 312 – LioN-M, DeviceNet device with 16 digital inputs (p-switching) to connect standard sensors, M12 socket, rotary switches for addressing, 7/8” bus connection, Plastic, 60 mm
Download datasheet
0930 DSL 313 – LioN-M, DeviceNet device with16 digital inputs (n-switching) to connect standard sensors, M12 socket, rotary switches for addressing, 7/8” bus connection, Plastic, 60 mm
Descrizione

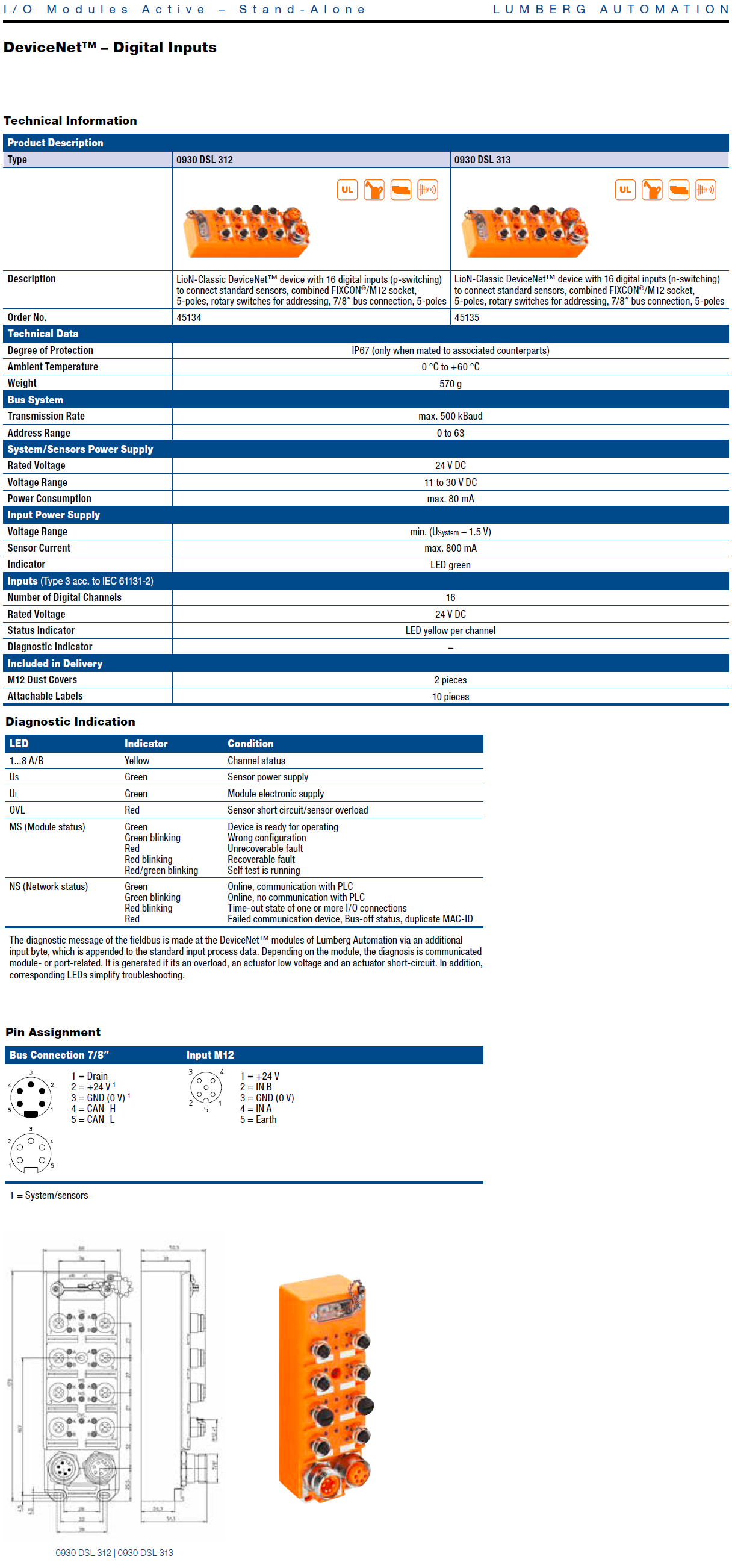

Technical Data
Environmental
Degree of protection IP 67
Operating temperature range -0°C (+32°F) to +60°C (+140°F)
Mechanical
Weight 570 g
Housing material PUR
Bus system DeviceNet
Transmission rate max. 500 kBaud
Autobaud yes
Address range 0–63 dec
Rotary address switches 0–63 dec
Default address 63 dec
Electronics power supply UL
Rated voltage 24 V DC
Voltage range 11–30 V DC
Power consumption max. 800 mA
Reverse polarity protection yes
Indication LED green
Input power supply US
Voltage range min. (USystem – 1.5 V)
Sensor current max. 800 mA
Short circuit-proof yes
Indication LED green
0930 DSL 312: Inputs Type 2 acc. to IEC 61131-2
Rated input voltage 24 V DC
Signal state “1” 11–30 V
Signal state “0” -3–5 V
Input current at 24 V 10 mA
Channel type N.O. p-switching
Number of digital channels 16
Channel status indicator LED yellow per channel
0930 DSL 313: Inputs Type 2 acc. to IEC 61131-2
Rated input voltage 24 V DC
Signal state “1” < (Us – 11 V)
Signal state “0” > (Us – 5 V)
Input current at 24 V -10 mA
Channel type N.O. n-switching
Number of digital channels 16
Channel status indicator LED yellow per channel
