Distributore LioN-M Device 16DI (8x M12) M12 Bus connection Plastic 60 mm
Distributore LioN-M Device 16DI (8x M12) M12 Bus connection Plastic 60 mm

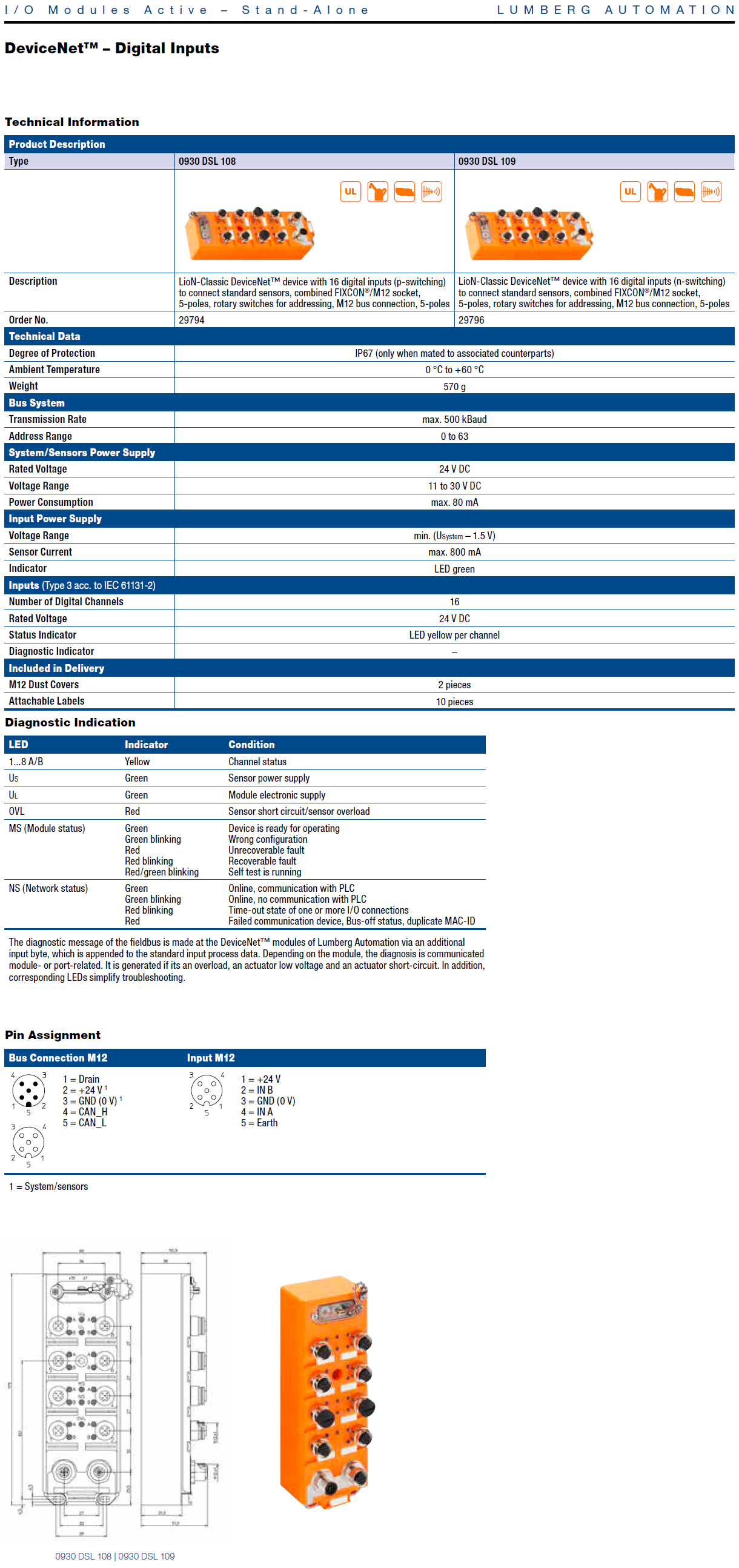

Download datasheet
0930 DSL 108 – LioN-M, DeviceNet device with16 digital inputs (p-switching) to connect standard sensors, M12 socket, rotary switches for addressing, M12 bus connection, Plastic, 60 mm
Download datasheet
0930 DSL 109 – LioN-M, DeviceNet device with 16 digital inputs (n-switching) to connect standard sensors, M12 socket, rotary switches for addressing, M12 bus connection, Plastic, 60 mm
Descrizione
Technical Data
Environmental
Degree of protection IP 67
Operating temperature range -0°C (+32°F) to +60°C (+140°F)
Mechanical
Weight 570 g
Housing material PUR
Bus system DeviceNet
Transmission rate max. 500 kBaud
Autobaud yes
Address range 0–63 dec
Rotary address switches 0–63 dec
Default address 63 dec
Electronics power supply UL
Rated voltage 24 V DC
Voltage range 11–30 V DC
Power consumption max. 80 mA
Reverse polarity protection yes
Indication LED green
Input power supply US
Voltage range min. (USystem – 1.5 V)
Sensor current max. 800 mA
Short circuit-proof yes
Indication LED green
0930 DSL 108: Inputs Type 2 acc. to IEC 61131-2
Rated input voltage 24 V DC
Signal state “1” 11–30 V
Signal state “0” -3–5 V
Input current at 24 V 10 mA
Channel type N.O. p-switching
Number of digital channels 16
Channel status indicator LED yellow per channel
0930 DSL 109: Inputs
Rated input voltage 24 V DC
Signal state “1” < (US – 11V)
Signal state “0” > (US – 5 V)
Input current at 6 V -10 mA
Channel type N.O. n-switching
Number of digital channels 16
Channel status indicator LED yellow per channel
