Distributore LioN-M Device 8DI 8DO (8x M12) 7/8” Bus connection 7/8” Actuator Supply Plastic 60 mm
Distributore LioN-M Device 8DI 8DO (8x M12) 7/8” Bus connection 7/8” Actuator Supply Plastic 60 mm
Download datasheet

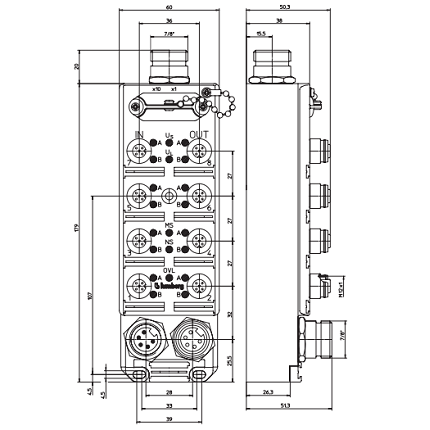

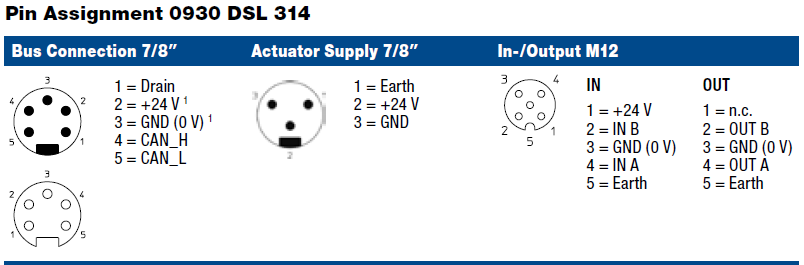

0930 DSL 314 – LioN-M, DeviceNet device with 8 digital inputs to connect standard sensors and 8 digital outputs (0.5 A) to connect standard actuators, combined M12 socket, rotary switches for addressing, 7/8” bus connection, 7/8“ actuator supply, Plastic, 60 mm
Descrizione
Technical Data
Environmental
Degree of protection IP 67
Operating temperature range -0°C (+32°F) to +60°C (+140°F)
Mechanical
Weight 570 g
Housing material PUR
Bus system DeviceNet
Transmission rate max. 500 kBaud
Autobaud yes
Address range 0–63 dec
Rotary address switches 0–63 dec
Default address 63 dec
Electronics power supply UL
Rated voltage 24 V DC
Voltage range 11–30 V DC
Power consumption max. 800 mA
Reverse polarity protection yes
Indication LED green
Input power supply
Voltage range min. (UL – 1.5 V)
Total current of all sensors max. 800 mA
Short circuit-proof yes
Indication LED green
Inputs Type 2 acc. to IEC 61131-2
Rated input voltage 24 V DC
Signal state “1” 11–30 V
Signal state “0” -3–5 V
Input current at 24 V 10 mA
Channel type N.O. p-switching
Number of digital channels 8
Channel status indicator LED yellow per channel
