Elettrovalvola cablare femmina forma B UL Led rosso Diodo PG9 trasparente pressacavo grigio
Elettrovalvola cablare femmina forma B UL Led rosso Diodo PG9 trasparente pressacavo grigio
Download datasheet
GML 209 NJ LED 24 HH grey GML Industrial Standard Field Attachable Connector: Form B, 3-pin (2+1PE), UL 1977, translucent housing with grey cable gland, screw type, PG9; with recovery diode and red LED, 24 V DC, 10 A
Download datasheet
GMNL 209 NJ LED 24 HH grey GMNL DIN Standard Field Attachable Connector: Form B, 3-pin (2+1PE), UL 1977, translucent housing with grey cable gland, screw type, PG9; with recovery diode and red LED, 24 V DC, 10 A
Descrizione

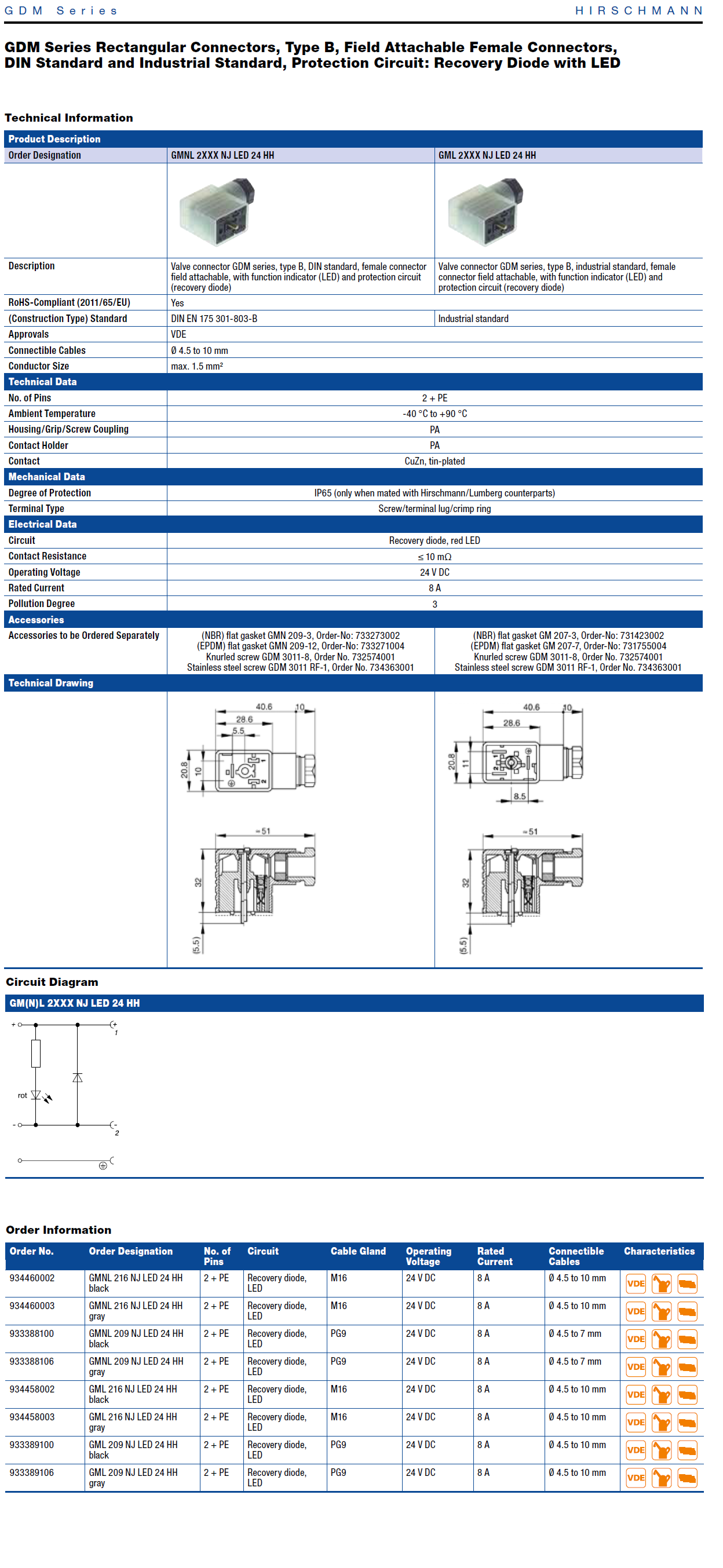

GDM Series Rectangular Connectors, Type B, Field Attachable Female Connectors, DIN Standard and Industrial Standard, Protection Circuit: Recovery Diode with LED
GML 2XXX NJ LED 24 HH: Valve connector GDM series, type B, DIN standard, female connector
field attachable, with function indicator (LED) and protection circuit (recovery diode), DIN EN 175 301-803-B
GML 2XX NJ LED: Valve connector GDM series, type B, industrial standard, female connector field attachable, with function indicator (LED) and protection circuit (recovery diode). Industrial standard
Approvals VDE/UL
Connectible Cables Ø 4.5 to 10 mm
Conductor Size max. 1.5 mm²
Technical Data
No. of Pins 2 + PE
Ambient Temperature -40 °C to +90 °C
Mechanical Data
Degree of Protection IP65 (only when mated with Hirschmann/Lumberg counterparts)
Terminal Type Screw/terminal lug/crimp ring
Electrical Data
Circuit Recovery diode, red LED
Contact Resistance ≤ 10 mΩ
Operating Voltage 24 V DC
Rated Current 8 A
