Elettrovalvola femmina forma C Led giallo varistore PUR arancione
Elettrovalvola femmina forma C Led giallo varistore PUR arancione
Download datasheet
VCD 1A-1-3-241 VCD DIN Standard Single-Ended Cordset: Form C, 4-pin (2+2PE), translucent body, with varistor and yellow LED, 24 V AC/DC, 4 A; PUR orange cable, 0.50 mm²
Descrizione

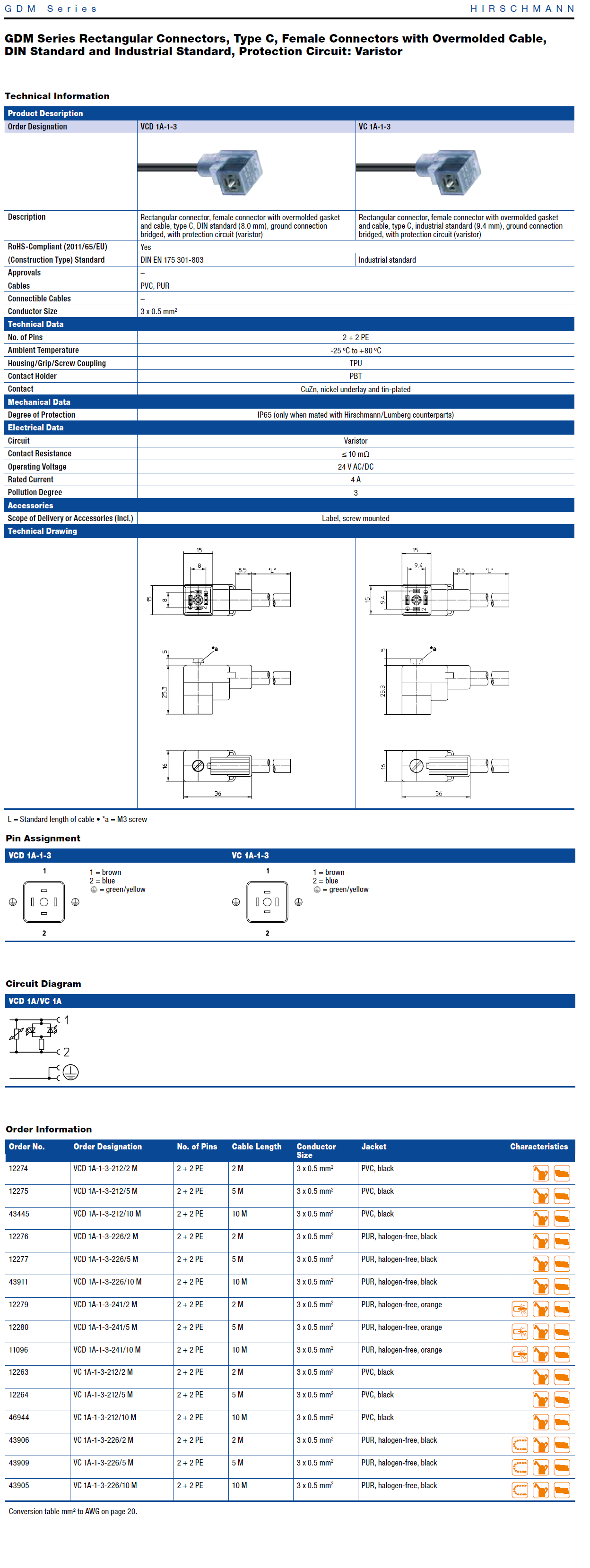

GDM Series Rectangular Connectors, Type C, Female Connectors with Overmolded Cable, DIN Standard and Industrial Standard, Protection Circuit: Varistor
VCD 1A-1-3: Rectangular connector, female connector with overmolded gasket and cable, type C, DIN standard (8.0 mm), ground connection bridged, with protection circuit (varistor) DIN EN 175 301-803
VC 1A-1-3: Rectangular connector, female connector with overmolded gasket and cable, type C, industrial standard (9.4 mm), ground connection bridged, with protection circuit (varistor) Industrial standard
Cables PVC, PUR
Conductor Size 3 x 0.5 mm2
Technical Data
No. of Pins 2 + 2 PE
Ambient Temperature -25 ºC to +80 ºC
Mechanical Data
Degree of Protection IP65 (only when mated with Hirschmann/Lumberg counterparts)
Electrical Data
Circuit Varistor
Contact Resistance ≤ 10 mΩ
Operating Voltage 230 V AC/DC
Rated Current 4 A
