Informazioni aggiuntive

Datasheet
Style 21179
Flyer Single Pair Ethernet (SPE)

Single Pair Ethernet covers the requirements of diverse industries, at the same time it can also supply devices with voltage via data cores with up to 50 Watt through PoDL (Power over Data Line). According to application area it is possible for the Customer to use the 1-pair cable for permanent installation, flexible use or for high dynamic application as a drag chain or at the robot. Different sheating materials are used to meet the respective customer requirements.

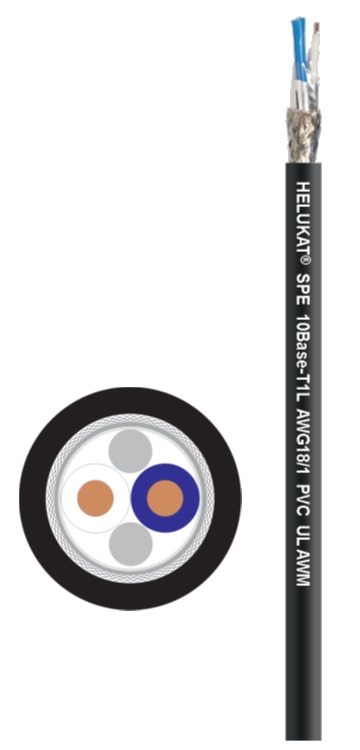

The applications could be diverse and provide relief in mechanical and plant engineering or process technology. For example, camera broadcasts, the insert in Cobots (collaborative robots that work together with humans) or the MessSensoric. SPE is the solution for miniaturization and holds out the prospect of small, space- and weight-saving wiring in the future. The Type HELUKAT® SPE 1x2xAWG18/1 Typ A 10BASE-T1L is suitable for fixed installation up to 1000m transmission distance and forms in the process industry the switching option from Profibus PA / Foundation Fieldbus with 31,25 kBit to a data rate 10 Mbit with SPE 10BASE-T1L. This opens up completely new areas of supplication in the future
