TRAYCONTROL® 530
Descrizione
Temperature range
UL/CSA TC -40°C to +90°C
flexing +5°C to +50°C
static -40°C to +105°C
Nominal voltage
UL/CSA TC 600 V
UL WTTC 1000 V
Informazioni aggiuntive
| Approval | CSA, HL, UL |
|---|---|
| Properties | Cable tray, Dir-Bur, Oil resistant, UV resistant |
Datasheet
File Number:
E330430: TC, TC-ER, TC-ER-HL
E330431: MTW
E330432: WTTC
E336111: CL2, CL2P, CL2R, CL2X, CL3, CL3P, CL3R, CL3X, PLTC
E336112: ITC

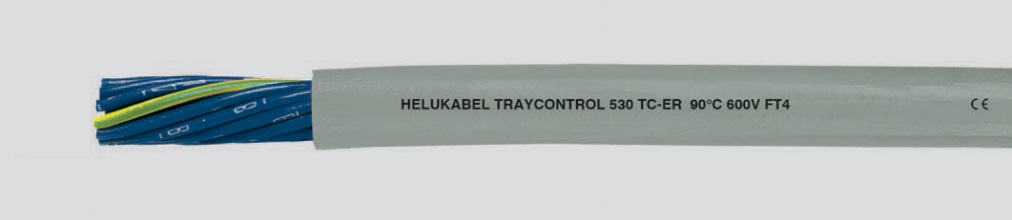

TRAYCONTROL® 530 is a flexible, oil-resistant control and power cable. The special combination of TC-ER, PLTC-ER and ITC-ER allows this cable to be used as a connecting cable for AC, DC or control wiring in accordance with NFPA 79. Approved for open, unprotected installation in cable trays to the machine. Its outstanding oil resistance (Oil Res I/II) guarantees a long service life for industrial applications in dry, damp and wet environments. Recommended applications: machine tools, production lines, and automotive industry manufacturing operations.
CE = The product conforms to EC Low-Voltage Directive 2006/95/EC.
