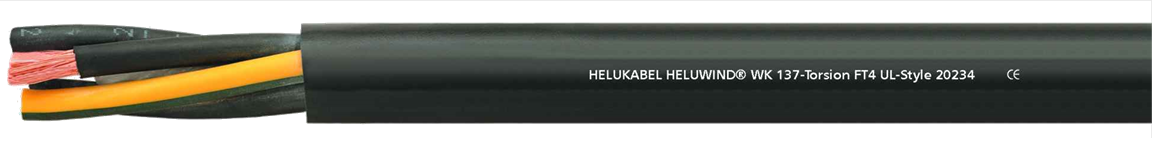

HELUWIND® WK 137-Torsion FT4
Descrizione
Temperature range
flexing -40°C to +90°C
fixed installation -40°C to +90°C
acc. to UL to +80°C
Nominal voltage
VDE U0/U 0,6/1kV
UL 1000V
Informazioni aggiuntive
| Properties | Abrasion resistant, Halogen free, Oil resistant, Torsion, UV resistant |
|---|
Datasheet
Style 10553 Single core
Style 20234 Multicore
The WK 137-Torsion FT4 has been designed for flexible use, and specifically for torsional load in the cable loop of a wind power plant. The voltage level has been configured as 0.6/1 kV for all dimensions, which means that the cables can also be laid in parallel in compliance with UL standards. It is no longer necessary to separate the cable routes. Additionally, this cable meets the strict requirements of CSA flame test FT4 and, thanks to its highly durable sheath and absence of halogen, is ideal for use in offshore wind power plants. The WK series has been successfully tested for more than 18,000 torsion cycles and thus offers optimum operational reliability far beyond the service life of the wind power plant. Advantages of
WK 137-Torsion FT4 over H07BN4-F: Fire behaviour in accordance with IEC 60332-3-24 and FT4, increased wear resistance.
CE = Product conforms with Low-Voltage Directive 2014/35/EU.
