    Isobus femmina serie EJ con piastra – femmina serie JPT cavo PUR nero






    Download datasheet

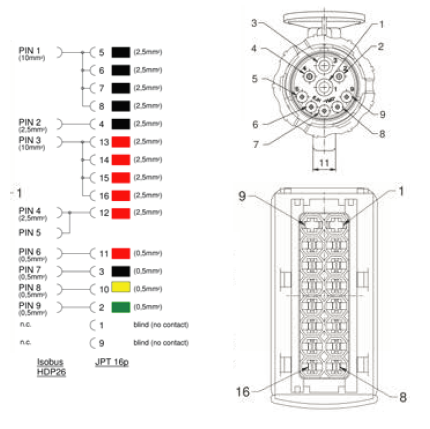

    EJ-JPT 55-10076 EJ-9-S-L1-JPT-16-S/1000P/6m Series Isobus Type EJ-JPT, n. poles 9/16, female-female, max. 12 V DC current rating 1000P cable 2×10-2×2.5-4×0.5mmq Landing plate PUR black, L=6m
    EJ-JPT 55-10077 EJ-9-S-L1-JPT-16-S/1000P/9m Series Isobus Type EJ-JPT, n. poles 9/16, female-female, max. 12 V DC current rating 1000P cable 2×10-2×2.5-4×0.5mmq Landing plate PUR black, L=9m
    EJ-JPT 55-10078 EJ-9-S-L1-JPT-16-S/1000P/12m Series Isobus Type EJ-JPT, n. poles 9/16, female-female, max. 12 V DC current rating 1000P cable 2×10-2×2.5-4×0.5mmq Landing plate PUR black, L=12m

    CONDIVIDI / SHARE

    Descrizione

    ISOBUS connectors
    Product specification
    Basic material
    Contact Copper alloy
    Contact plating EJ and HD: Ni / JPT: Sn
    Contact carrier EJ: PA6.6 / HD: Aluminium/Thermoplast / JPT: PBT ASA GF30
    Overmould TPU, UL94 V-0, black
    Landing plate (EJ) PA6.6 UL94 V-0, black
    Protective cover EJ: PA6.6 UL94 V-0, black / HDC: Aluminium
    Corrugated tube PA6 UL94 HB, black
    Sealing Silicone
    Technical Data
    Rated voltage EJ and JPT: max. 12 V DC / HD: max. 32 V DC
    Current rating max.:
    600P altern. 1000P altern. 1600P:
    25 A at 40 °C [6 mm²] altern.
    35 A at 40 °C [10 mm²] altern.
    60 A at 40 °C [16 mm²]
    15 A at 40 °C [2,5 mm²]
    5 A at 40 °C [0,5 mm²]
    Degree of protection IP67 / IP69K in mated condition
    Temperature range connectors EJ / HD: -40 °C to +85 °C / JPT: -40 °C to +80 °C
    Temerature range cable Fixed installation: -40 °C to +85 °C
    Flexible installation: -20°C to +85 °C
    Terminal cross section 600P altern. 1000 altern. 1600P:
    2 x 6 mm² altern. 2 x 10 mm² altern. 2 x 16 mm²
    2 x 2,5 mm² +
    4 x 0,5 mm²
    Housing EJ / HD34 / JPT
