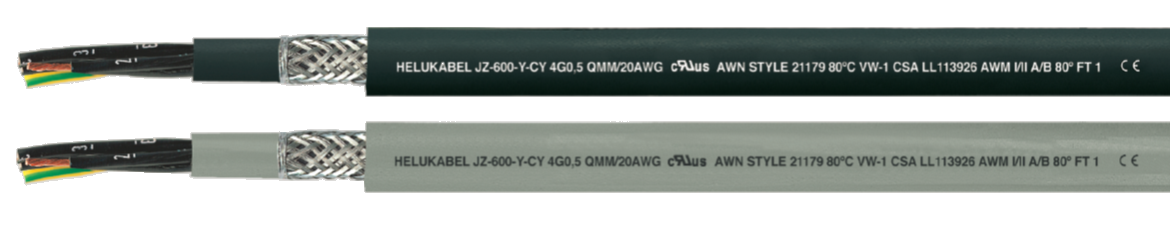

JZ-600-Y-CY UL/CSA
Descrizione
Temperature range
flexing -5°C to +80°C
fixed installation -40°C to +80°C
Nominal voltage
VDE U0/U 600/1000V
UL/CSA 1000V
Informazioni aggiuntive
| Approval | CSA, UL |
|---|---|
| Properties | Chemicals resistant, Oil resistant, UV resistant |
PVC control cable for measuring, monitoring and control purposes in tool machinery, conveyor belts and production lines in machinery, in air conditioning, in foundries and steel mills. Suitable for installation for flexible use for medium mechanical stresses with free movement without tensile stress or forced movements in dry, moist and wet rooms as well as outside (fixed installation, building with black sheath). Is not suitable to be used as direct burrial- or as underwater cable. Interference-free transmission of signals and pulses is assured by the high degree of screening.
EMC = Electromagnetic compatibility
To optimize the EMC features we recommend a large round contact of the copper braiding on both ends.
CE = Product conforms with Low-Voltage Directive 2014/35/EU.
