M12 cablare IDC maschio diritto A-coded
M12 cablare IDC maschio diritto A-coded
Download datasheet

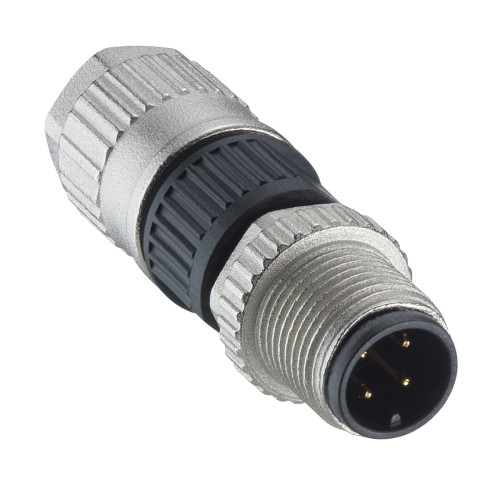

1250 04 T6CI M12 connector, male, field-attachable, with insulation displacement connection (IDC), straight, A-coded, IP67.
CONDIVIDI / SHARE
Descrizione
Environmental conditions
Temperature range: -25 °C/+85 °C
Materials
Insulating body: PA
Contact pin: CuSn, gold-plated
Knurled screw: Zn diecast, nickel-plated
Cap nut: Zn diecast, nickel-plated
Mechanical data
Spanner size: SW13
Protection class:IP67*1
1) only in locked condition with an appropriate counterpart
Connectable conductors for IDT area
Section min.: AWG 26
Section max.: AWG 22
Cable diameter: 4.0–6.0 mm
Electrical data (at Tamb 20 °C)
Rated current: 4A
Rated voltage: 32 V AC/DC
(with pollution degree 3)
