M12 pannello baionetta sch. retro saldare pcb femmina A-coded
M12 pannello baionetta sch. retro saldare pcb femmina A-coded
Download datasheet
43-04455 SAL – MB12S – FKH4 – X10 M12x1 A-coded female axial 4 pos. back panel mounting, bayonet/screwable locking, solder pin straight panel thickness 2,2 mm
Download datasheet

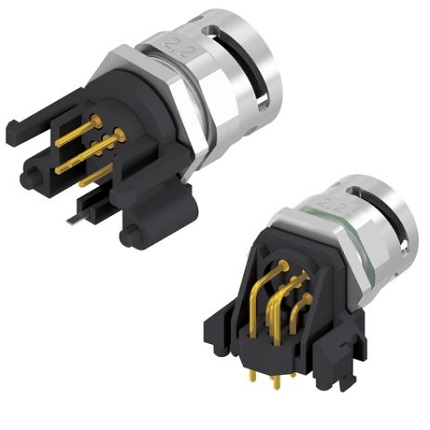

43-04456 SAL – MB12S – FKHWO4 M12x1 A-coded female angled 4 pos. back panel mounting, bayonet/screwable locking, solder pin angled panel thickness 2,2 mm
Download datasheet

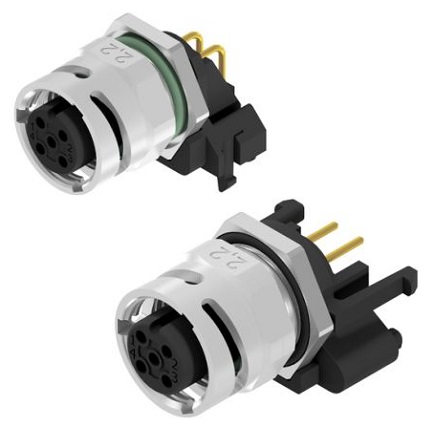

43-03922 SAL – MB12S – FKHWO5 M12x1 A-coded female h=9mm 5 pos. back panel mounting, bayonet/screwable locking, solder pin angled panel thickness 2,2 mm
Download datasheet
43-03923 SAL – MB12S – FKH5 – X10 M12x1 A-coded female h=10mm 5 pos. back panel mounting, bayonet/screwable locking, solder pin straight panel thickness 2,2 mm
Descrizione
Technical Data
Working voltage signal 250V / 60V
Current rating signal 4 A at +40°C
min. working temperature -40° C
max. working temperature +85° C
Shielding Shielded
