M12 pannello baionetta/vite retro saldare pcb femmina D-coded
M12 pannello baionetta/vite retro saldare pcb femmina D-coded
Download datasheet

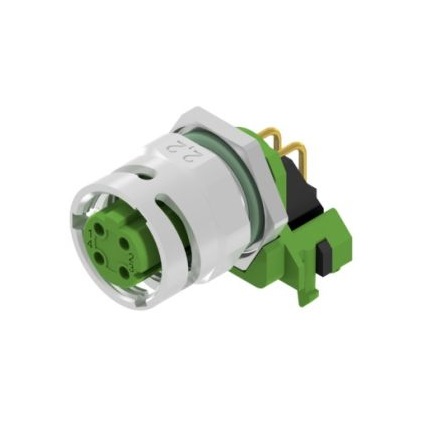

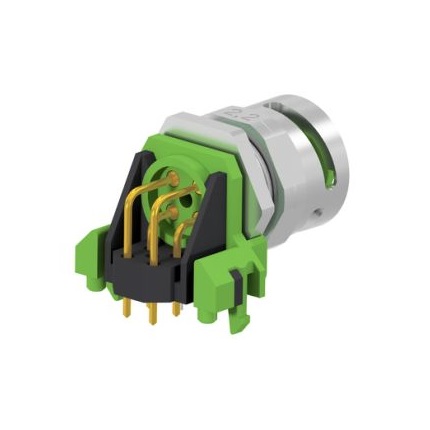

43-03920 SAL – MB12D – FKHWO4 M12x1 D-coded female angled 4 pos. back panel mounting, panel thickness 2,2 mm, bayonet/screwable locking, solder pin angled h=9mm
Download datasheet

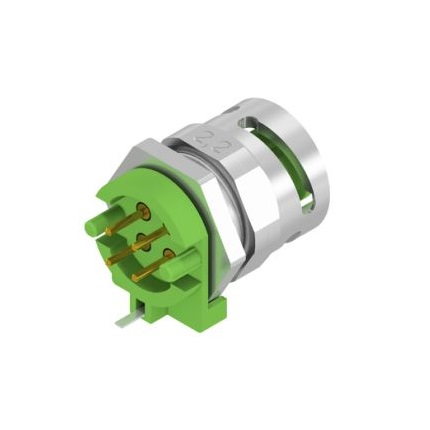

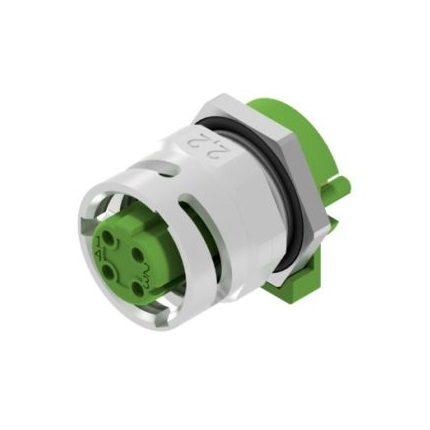

43-03921 SAL – MB12D – FKH4 – X5,5 M12x1 D-coded female axial 4 pos. back panel mounting, panel thickness 2,2 mm, bayonet/screwable locking, solder pin straight h=5,5mm
CONDIVIDI / SHARE
Descrizione
Technical data
Working voltage signal 250 V
Current rating signal 4 A at +40°C
min. working temperature -40° C
max. working temperature +85° C
Shielding Shielded
