M12 Power maschio 90° L-coded 16A TPE-U grigio

    Richiesta informazioni

    Compila il form e invia una richiesta su questo prodotto

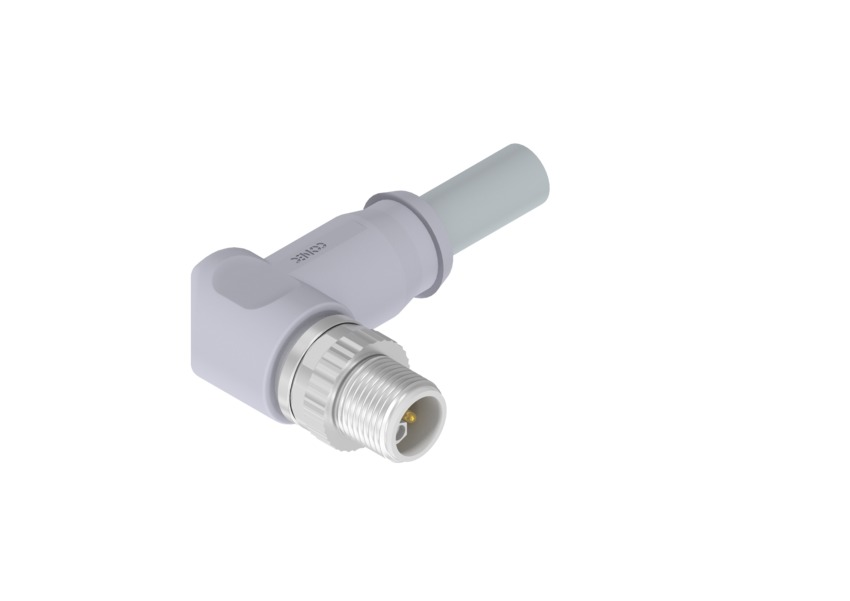

    M12 Power maschio 90° L-coded 16A TPE-U grigio

    TPE-U, UL 20549, grey

    Download datasheet


    43-21400 SAL-12L-RSW4FE-2/K2 M12 L-coded male angled 5 pos. TPE-U UL Grey, 5×2,5mm², 2 m
    43-21401 SAL-12L-RSW4FE-3/K2 M12 L-coded male angled 5 pos. TPE-U UL Grey, 5×2,5mm², 3 m
    43-21402 SAL-12L-RSW4FE-5/K2 M12 L-coded male angled 5 pos. TPE-U UL Grey, 5×2,5mm², 5 m
    43-21403 SAL-12L-RSW4FE-10/K2 M12 L-coded male angled 5 pos. TPE-U UL Grey, 5×2,5mm², 10 m

    CONDIVIDI / SHARE

    Descrizione

    General Data
    Product type Power connectors
    Style Overmoulded Connectors
    Size A-side M12x1
    Design single ended
    Size/Number of positions 4-pos+FE
    Coding L-coded
    Type A-side [ Female, Male] Male connector angled
    IP range A-side IP67
    Mounting options [e.g. front/back panel mounting etc.] cable connector
    Termination signal [e.g. clamp, crimp, solder, SMT] Screw Termination
    Screw connection [e.g. PG9, M16 etc.] M12x1
    Technical Data
    Working voltage signal 63 V
    Current rating signal 16 A
    min. working temperature -25° C
    max. working temperature +80° C
    Shielding Unshielded
    Cable quality [e.g. PP, PVC, TPE etc.] PUR/PVC
    Wire cross section 2,5 mm²
