M23 cablare saldare femmina diritto
M23 cablare saldare femmina diritto
Download datasheet

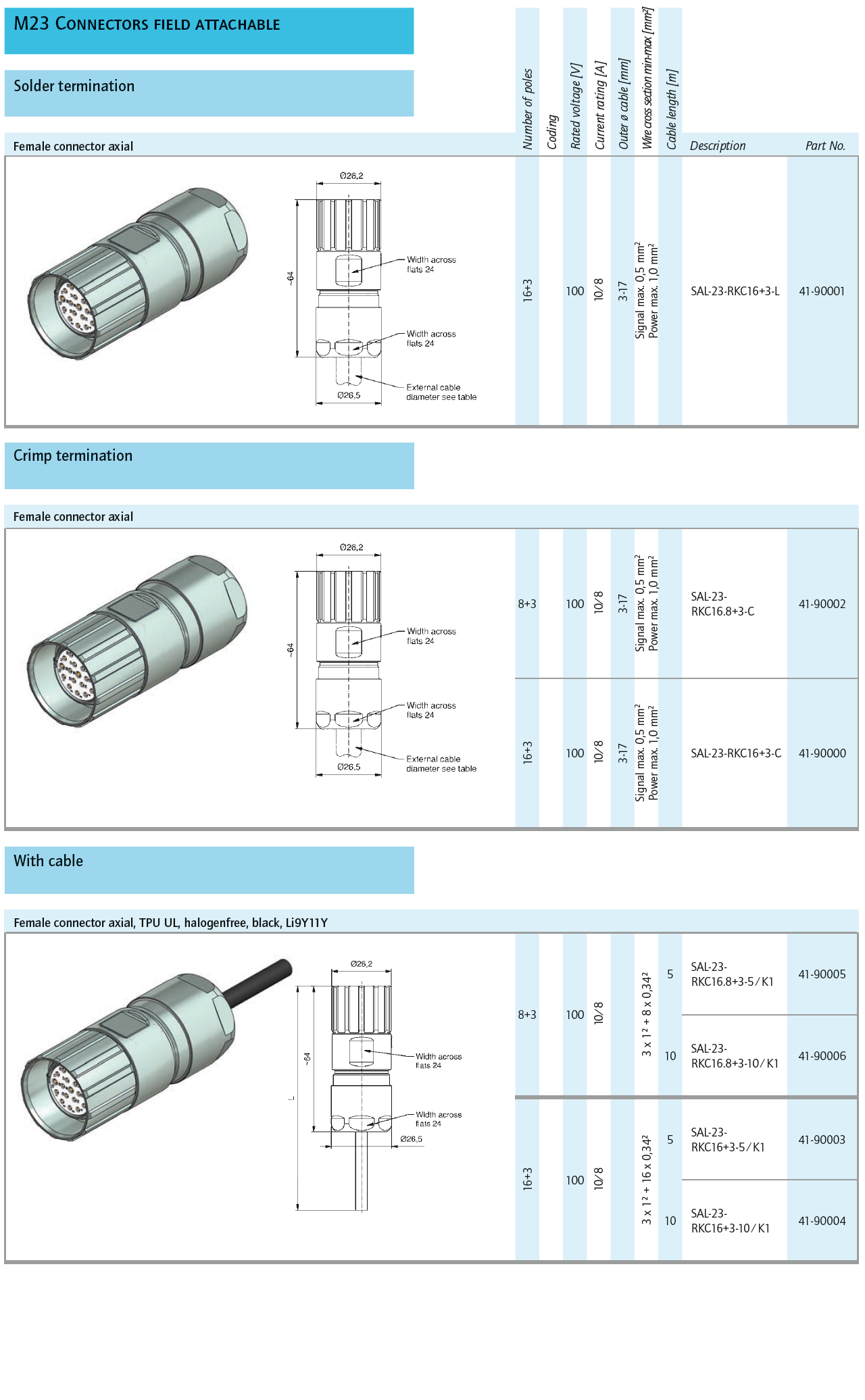

41-90001 SAL-23-RKC16+3-L M23 field attachable female axial 16P+3P, solder cup termination
CONDIVIDI / SHARE
Descrizione
Technical Data
Termination signal [e.g. clamp, crimp, solder, SMT] Solder cup
Shielding Unshielded
Wire cross section max. 1,5 mm²
min. working temperature -40° C
Working voltage signal 100 V DC
IP rating IP67
Current rating signal Summation power: 3 contacts 10 A, 16 contacts 8 A at 40°C
