M8 insulation body sch. male A-coded THR
M8 insulation body sch. male A-coded THR
M8x1 Sockets THR
Download datasheet
42-01392 SAL-8S-IS3/THR M8 A-coded male axial insulation body 3 pos. THR, with shielding, 50 V AC / 60 V DC, 4A
Download datasheet
42-01396 SAL-8S-IS4/THR M8 A-coded male axial insulation body 4 pos. THR, with shielding, 50 V AC / 60 V DC, 4A
Download datasheet

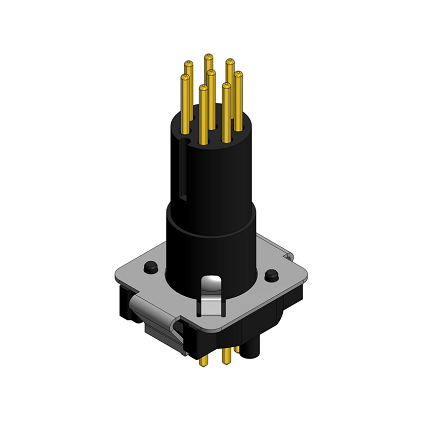

42-01404 SAL-8S-IS8/THR M8 A-coded male axial insulation body 8 pos. THR, with shielding, 30 V AC / 30 V DC, 2A
Descrizione
General Data
Size A-side M8x1
Design Insulation body
Size/Number of positions 3/4/8-pos.
Contact type Male connector axial
Coding A-coded
Termination signal [e.g. clamp, crimp, solder, SMT] THR
Style Installation components
Product type Sockets
Type Insulation body
Technical Data
Shielding Shielded
Material Data
Insulator material LCP GF
Insulator color Black
Signal contact material Copper alloy
Plating signal contact (mating area) Gold over nickel
Specifications
Standard current rating IEC 61076-2-104
