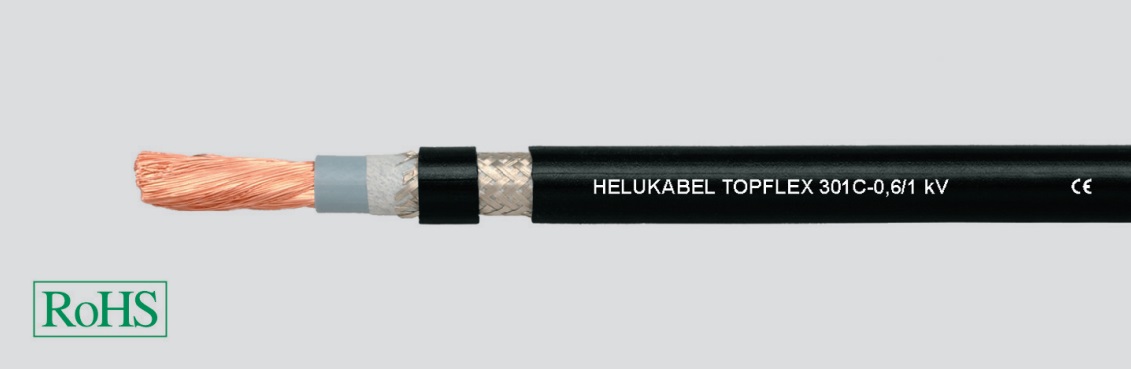

TOPFLEX® 301 / 301-C
Descrizione
Temperature range
flexing -15°C to +80°C
Nominal voltage
U0/U 600/1000V
UL 600V
Informazioni aggiuntive
| Approval | CSA, UL |
|---|---|
| Properties | Abrasion resistant, Chemicals resistant, Coolant resistant, Hydrolysis resistant, Microbes resistant, Oil resistant, UV resistant |
Datasheet
File N. E170315
Style 10553
TOPFLEX® 301 (unscreened) These cables are specially designed for use in energy supply chains, automated handling equipment, robots, machine tools, processing and manufacturing machinery.
TOPFLEX® 301-C(screened) Applications as described above, additionally optimal compliance with electromagnetic compatibillity (EMC) requirements on account of the approx. 85% coverage by the braided screening.
EMC = Electromagnetic compatibillity
To optimize the EMC features we recommend a large round contact of the copper braiding on both ends.
CE = The product is conformed with the EC Low-Voltage Directive 2006/95/EC.
