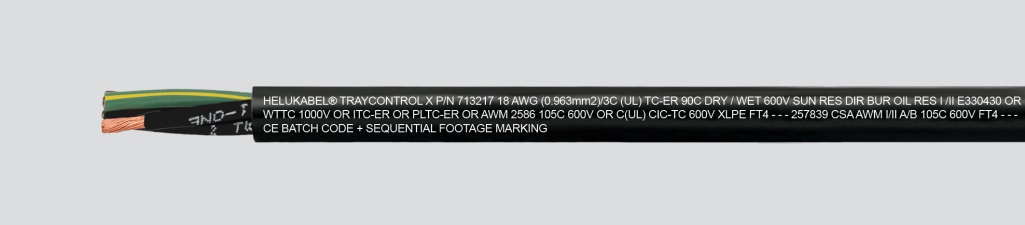

TRAYCONTROL® X
Descrizione
Temperature range
UL/CSA TC -40°C to +90°C
flexing +5°C to +50°C
static -40°C to +105°C
Nominal voltage
UL/CSA TC 600 V
UL WTTC 1000 V
Informazioni aggiuntive
| Approval | CSA, HL, UL |
|---|---|
| Properties | Cable tray, Dir-Bur, Oil resistant, UV resistant |
Datasheet
File Number:
E330430: TC, TC-ER, TC-ER-HL
E330431: MTW
E330432: WTTC
E336111: CL2, CL2P, CL2R, CL2X, CL3, CL3P, CL3R, CL3X, PLTC
E336112: ITC
NFPA 79 conformant flexible control and power cable with cross-linked (thermoset) polyethylene (XLPE) insulation. XLPE insulation is ideal for applications that require long cable runs due to its low capacitance. A higher current load rating is possible due to the conductor temperature resistance of 105°C. Rated for up to 600 V (WTTC 1000 V), these tray cables are suitable for all machinery in tool and plant construction, and can be installed in dry, humid and damp environments, in the open and in pipes. For underground installation and for open, unprotected installation from the cable rack to machines in industrial plants. They are approved for use in 1kV wind turbine cable tray applications and tested for torsion applications.
CE = The product conforms to EC Low-Voltage Directive 2006/95/EC.
