Distributore LioN-M Device 16DO (8x M12) 7/8“ Actuator Supply Plastic 60 mm
Distributore LioN-M Device 16DO (8x M12) 7/8“ Actuator Supply Plastic 60 mm
Download datasheet
0930 CSL 114 – LioN-M, CANopen device with 16 digital outputs (0.5 A) to connect standard actuators, combined FIXCON/M12 socket, rotary address switches for addressing, M12 bus connection, 7/8″ actuator supply, Plastic, 60 mm
Descrizione
Technical Data
Classification
Belden class I/O Modules with Digital Outputs (DO)
Belden brand Lumberg-Automation
Mechanical data
Weight 570 g

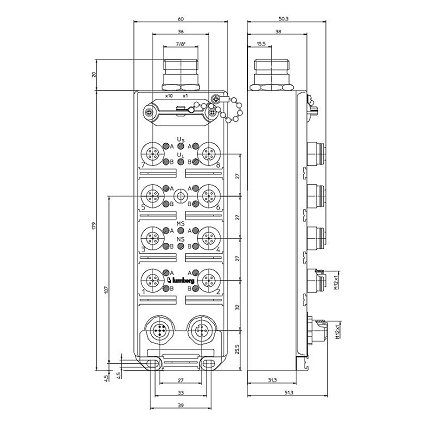

Dimensions (W x H x D) 60 mm x 199 mm x 51.3 mm
Environmental conditions
Environmental temperature 0 ºC … 60 ºC
Degree of protection (IP), mounted IP67
Materials
Housing material / Molded body PUR
Bus system CANopen®
Bus Connection M12
Autobaud Yes
Transmission rate max. 1000 kbit/s
Address range 1 dec. … 99 dec.
Rotary address switches 1 dec. … 99 dec.
Default address 63 dec.
Communication modes PDO, SDO, NMT, Node-Guarding
Supply Fieldbus Interface UL
Nominal voltage (Supply Fieldbus Interface) 24 V DC
Voltage range (Supply Fieldbus Interface) 11 – 30 V DC
Current consumption (Supply Fieldbus Interface) max. 80 mA
Reverse polarity protection (Supply Fieldbus
Interface) Yes
Function Indicator (Supply Fieldbus Interface) LED green
Actuator power supply US with potential separation
Nominal voltage (Actuator power supply) 24 V DC
Voltage range (Output power supply) 19 V … 30 V
Reverse polarity protection (Output power supply) Yes
Indication (Output power supply) LED green
Output wiring Type 0.5 A acc. to IEC 61131-2
Signal type (Outputs) Digital Outputs
Number of channels (Outputs) 16
Channel type (Outputs) N.O., p-switching
Nominal output current per channel 0.7 A
Short-circuit proof (Outputs) Yes
Max. output current per module (Outputs) 11.2 A
Overload-proof (Outputs) Yes
Channel status indicator (Outputs) LED yellow per channel
Diagnostic indication (outputs) LED red per channel
