0930 CSL 113 – LioN-M, CANopen device with 8 digital inputs to connect standard sensors and 8 digital outputs (0.5 A) to connect standard actuators, combined FIXCON/M12 socket, rotary address switches for addressing, M12 bus connection, 7/8″ actuator supply, Plastic, 60 mm
Descrizione
Technical Data
Classification
Belden class I/O Modules with Digital Inputs and Outputs (DI/DO)
Belden brand Lumberg-Automation
Mechanical data
Weight 570 g

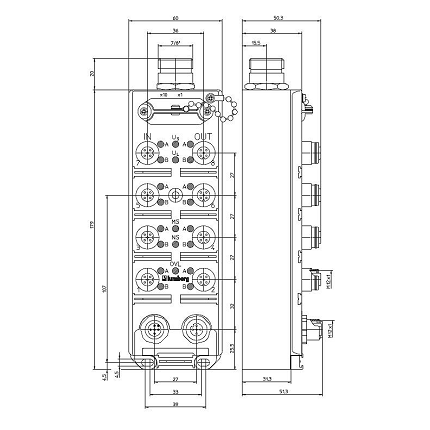

Dimensions (W x H x D) 60 mm x 199 mm x 51.3 mm
Environmental conditions
Environmental temperature 0 ºC … 60 ºC
Degree of protection (IP), mounted IP67
Materials
Housing material / Molded body PUR

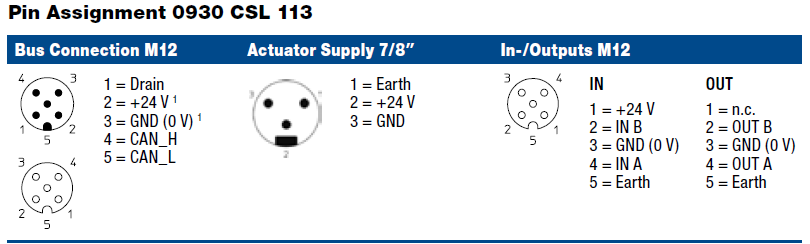

Bus system CANopen®
Bus Connection M12
Autobaud Yes
Transmission rate max. 1000 kbit/s
Address range 1 dec. … 99 dec.
Rotary address switches 1 dec. … 99 dec.
Default address 63 dec.
Communication modes PDO, SDO, NMT, Node-Guarding
Supply Fieldbus Interface UL
Nominal voltage (Supply Fieldbus Interface) 24 V DC
Voltage range (Supply Fieldbus Interface) 11 – 30 V DC
Current consumption (Supply Fieldbus Interface) max. 80 mA
Reverse polarity protection (Supply Fieldbus
Interface) Yes
Function Indicator (Supply Fieldbus Interface) LED green
Sensors power supply
Voltage range (Sensor power supply) min. (UL – 1.5 V)
Sensor current (at TU30°C) (Sensor power supply) max. 800 mA
Short-circuit proof (Sensor power supply) Yes
Indication (Sensor power supply) LED green
Actuator power supply US with potential separation
Nominal voltage (Actuator power supply) 24 V DC
Voltage range (Output power supply) 19 V … 30 V
Reverse polarity protection (Output power supply) Yes
Indication (Output power supply) LED green
Input wiring Type 2 acc. to IEC 61131-2
Signal type (Inputs) Digital Inputs
Number of channels (Inputs) 8
Channel type (Inputs) N.O., p-switching
Nominal input voltage 24 V DC
Voltage (Signal status “1”) – Explanation 11 – 30 V
Voltage (Signal status “0”) – Explanation -3 – 5 V
Channel status indicator (Inputs) LED yellow per channel
Input current at 24 V DC (typ.) 10 mA
Output wiring Type 0.5 A acc. to IEC 61131-2
Signal type (Outputs) Digital Outputs
Number of channels (Outputs) 8
Channel type (Outputs) N.O., p-switching
Nominal output current per channel 0.7 A
Short-circuit proof (Outputs) Yes
Max. output current per module (Outputs) 5.6 A
Overload-proof (Outputs) Yes
Channel status indicator (Outputs) LED yellow per channel
Diagnostic indication (outputs) LED red per channel
