Distributore LioN-R Device 8DI 8DO (8x M12) 7/8" Power Supply Metal 60 mm
Distributore LioN-R Device 8DI 8DO (8x M12) 7/8″ Power Supply Metal 60 mm

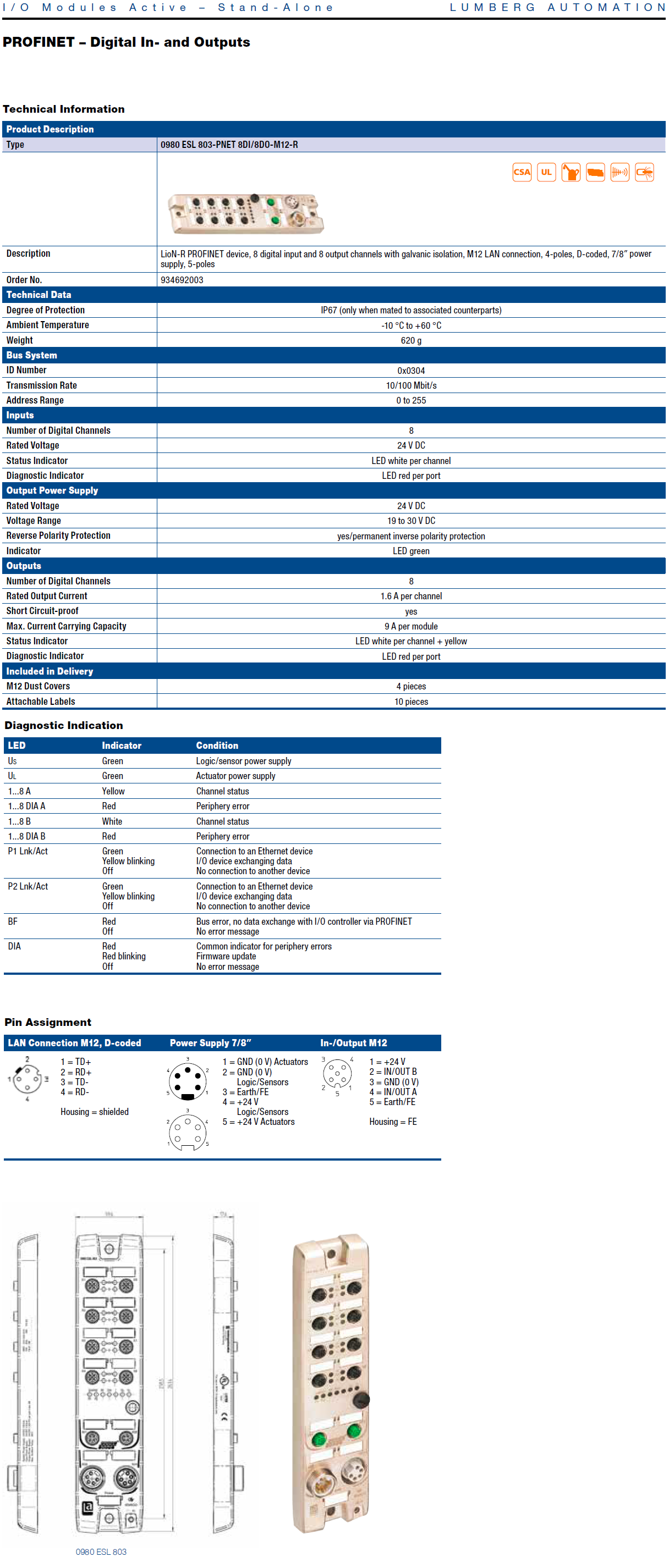

Download datasheet
0980 ESL 803-PNET 8DI/8DO-M12-R – LioN-R, PROFINET I/O Device, 8DI 8DO (8x M12), 7/8″ Power Supply, Metal, 60 mm
CONDIVIDI / SHARE
Descrizione
Product Description
Brand: Belden
Product Family: I/O Systems: Active – Standalone
Product Sub Family: LioN-R
Device Type: I/O Device
Protocol: PROFINET
I/O Function: 8DI 8DO

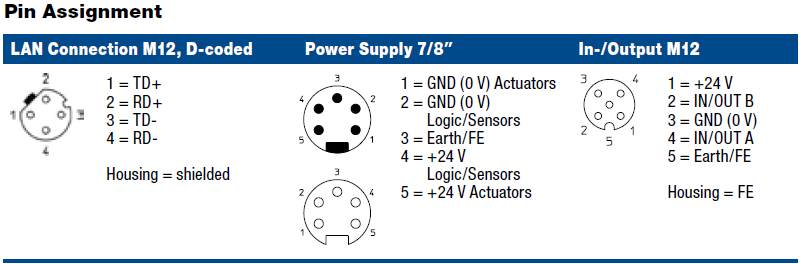

Bus Connection: M12 LAN, 4-poles, D-coded
Power Connection (System Supply): 7/8″ Power, 5-poles
I/O Connection: M12, 5-poles, A-coded
I/O Type: Digital Input and Digital Output
