Elettrovalvola femmina forma B PVC nero
Elettrovalvola femmina forma B PVC nero
Download datasheet

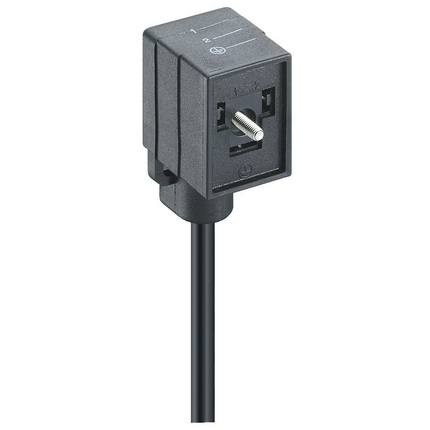

VBD 1D-3-1-205 VBD DIN Standard Single-Ended Cordset: Form B, 3-pin (2+1PE; PE at cable outlet), black body, without circuitry, 230 V AC/DC, 4 A; PVC black cable, 0.75 mm²
Download datasheet
VBD 1D-3-2-205 VBD DIN Standard Single-Ended Cordset: Form B, 3-pin (2+1PE; PE across cable outlet), black body, without circuitry, 230 V AC/DC, 4 A; PVC black cable, 0.75 mm²
Download datasheet

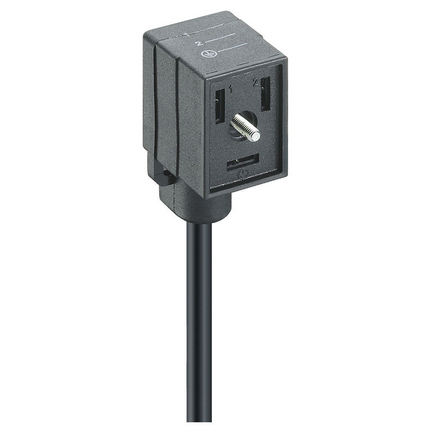

VB 1D-3-1-205 VB Industrial Standard Single-Ended Cordset: Form B, 3-pin (2+1PE; PE at cable outlet), black body, without circuitry, 230 V AC/DC, 4 A; PVC black cable, 0.75 mm²
Download datasheet
VB 1D-3-2-205 VB Industrial Standard Single-Ended Cordset: Form B, 3-pin (2+1PE; PE across cable outlet), black body, without circuitry, 230 V AC/DC, 4 A; PVC black cable, 0.75 mm²
Descrizione
GDM Series Valve Connectors, Type B, Overmolded Female Connectors, DIN Standard and Industrial Standard, no Circuit
VBD 1D X-X: DIN standard, no circuit Standard DIN EN 175 301-803
VB 1D-X-X: Industrial standard, no circuit
Cables PVC, PUR
Connectible Cables –
Conductor Size 0.50 mm2 or 0.75 mm2
Technical Data
No. of Pins 2 + PE
Ambient Temperature -25 °C to +80 °C
Electrical Data
Circuit No protection circuit
Contact Resistance ≤ 5 mΩ
Operating Voltage 230 V AC/DC
Rated Current 4 A
