Elettrovalvola cablare femmina forma A Led giallo diodo soppressore M16 trasparente
Elettrovalvola cablare femmina forma A Led giallo diodo soppressore M16 trasparente

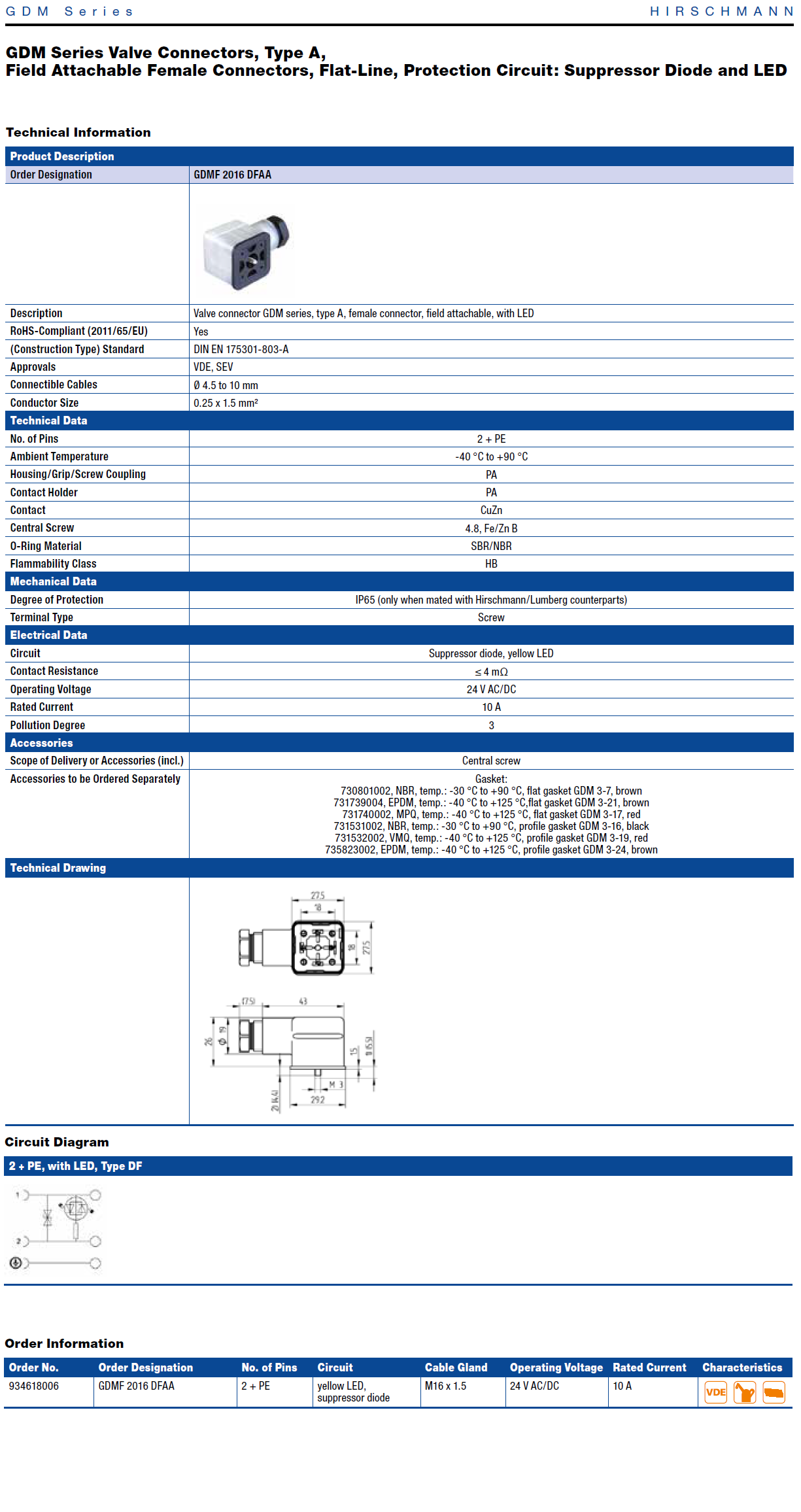

Download datasheet
GDMF 2016 DFAA GDMF Flat Line DIN Standard Field Attachable Connector: Form A, 3-pin (2+1PE; PE across cable outlet), transparent housing, screw type, M16; with supressor diode and yellow LED, 24 V AC/DC, 10 A
Download datasheet
GDMF 2116 DFAA GDMF Flat Line DIN Standard Field Attachable Connector: Form A, 3-pin (2+1PE; PE across cable outlet), transparent housing, screw type, M16; with supressor diode and yellow LED, 24 V AC/DC, 10 A
Descrizione
GDM Series Valve Connectors, Type A, Field Attachable Female Connectors, Flat-Line, Protection Circuit: Suppressor Diode and LED
Valve connector GDM series, type A, female connector, field attachable, with LED
(Construction Type) Standard DIN EN 175301-803-A
Approvals VDE, SEV
Connectible Cables Ø 4.5 to 10 mm
Conductor Size 0.25 x 1.5 mm²
Technical Data
No. of Pins
No. of Pins 2 + PE
Ambient Temperature -40 °C to +90 °C
Electrical Data
Circuit Suppressor diode, yellow LED
Contact Resistance ≤ 4 mΩ
Operating Voltage 24 V DC
Rated Current 10 A
