M12 maschio 90° D-coded PUR verde
M12 maschio 90° D-coded PUR verde

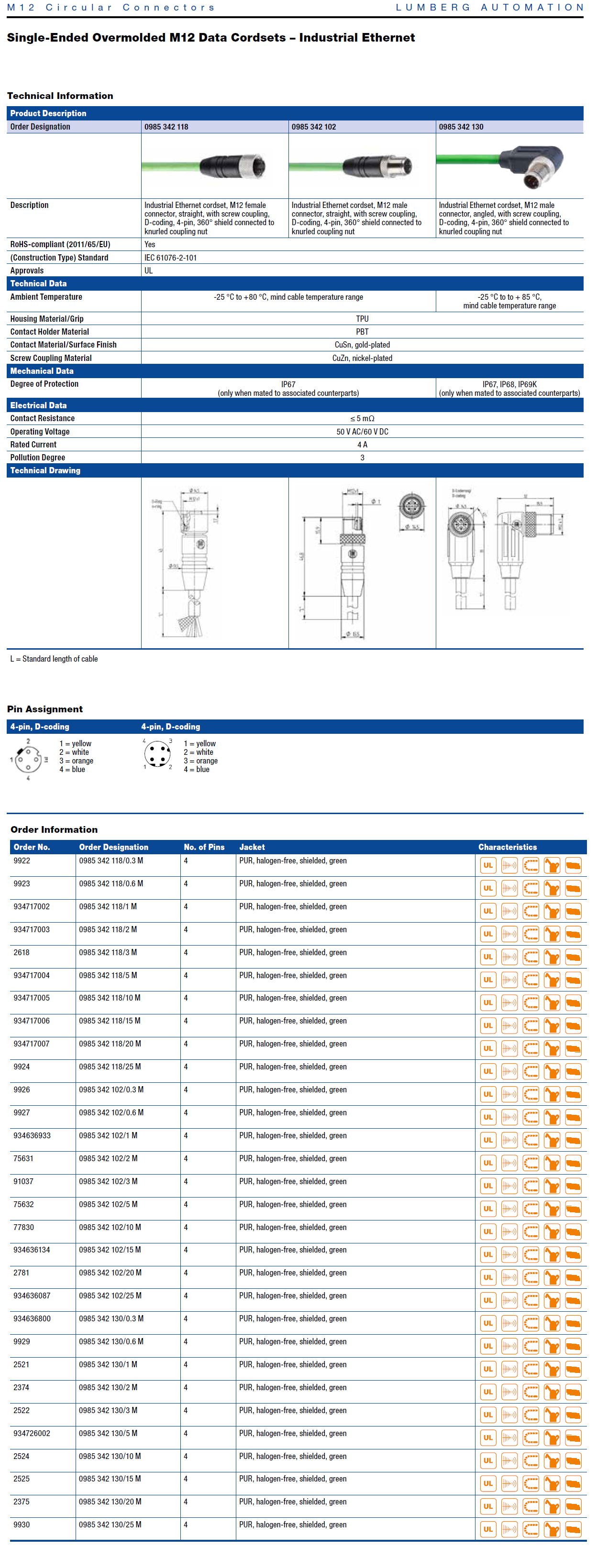

Download datasheet
0985 342 130 – Fast Ethernet Cat5e Data Single-Ended Cordset: M12 Standard, male, angled, 4-pin, D-coded, shielded, black body, 50 V AC / 60 V DC, 4 A; PUR green cable, 4-wires, 2x2x0.34 mm²
CONDIVIDI / SHARE
Descrizione
Coding: D
Shielding: Shielded
Attachment Type: Coupling Nut
Rated Voltage: 60 V
Rated Voltage (UL): 30 V AC/DC
Operating Voltage: 50 V AC / 60 V DC
Rated Current*: 4 A
Rated Current (UL)*: 4 A
Data Transmission: Fast Ethernet Cat5e
Ambient Temperature (Operation)*: – 40 °C – + 90 °C
Operating Temperature (UL): max. + 50 °C
Protection Degree / IP Rating**: IP65, IP67, IP69K
