Descrizione

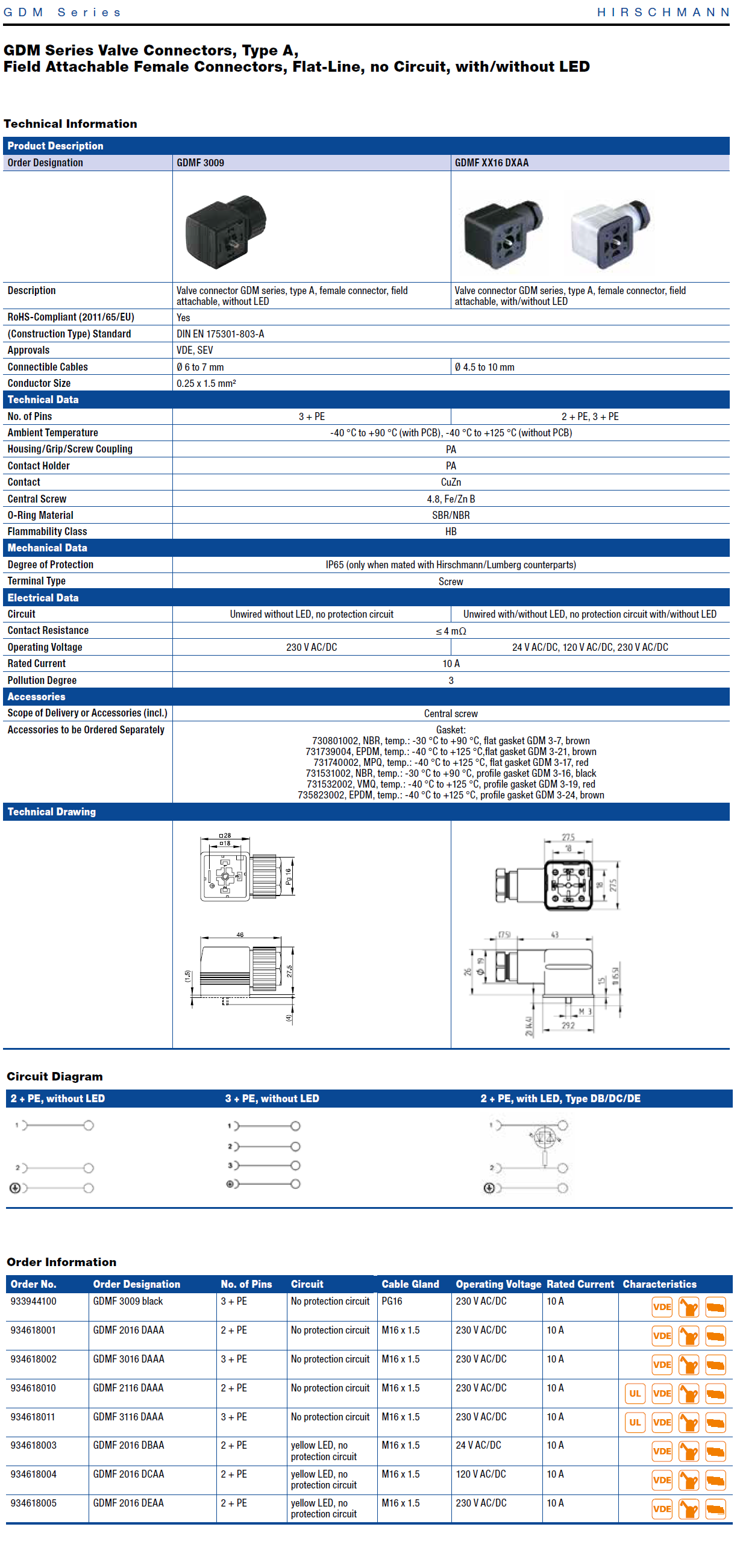

GDM Series Valve Connectors, Type A, Field Attachable Female Connectors, Flat-Line, no Circuit, with/without LED

GDMF 3009: Valve connector GDM series, type A, female connector, field attachable, without LED
GDMF XX16 DXAA Valve connector GDM series, type A, female connector, field attachable, with/without LED

Standard DIN EN 175301-803-A
Approvals VDE, SEV
Connectible Cables
GDMF 3009: Ø 6 to 7 mm
GDMF XX16 DXAA: Ø 4.5 to 10 mm
Conductor Size 0.25 x 1.5 mm²
Technical Data
No. of Pins
GDMF 3009: 3 + PE Unwired without LED, no protection circuit
GDMF XX16 DXAA: 2 + PE, 3 + PE Unwired with/without LED, no protection circuit with/without LED
Ambient Temperature -40 °C to +90 °C (with PCB), -40 °C to +125 °C (without PCB)
Electrical Data
Degree of Protection IP65 (only when mated with Hirschmann/Lumberg counterparts)
GDMF 3009 230 V AC/DC
GDMF XX16 DXAA:  24 V AC/DC, 120 V AC/DC, 230 V AC/DC
10A
